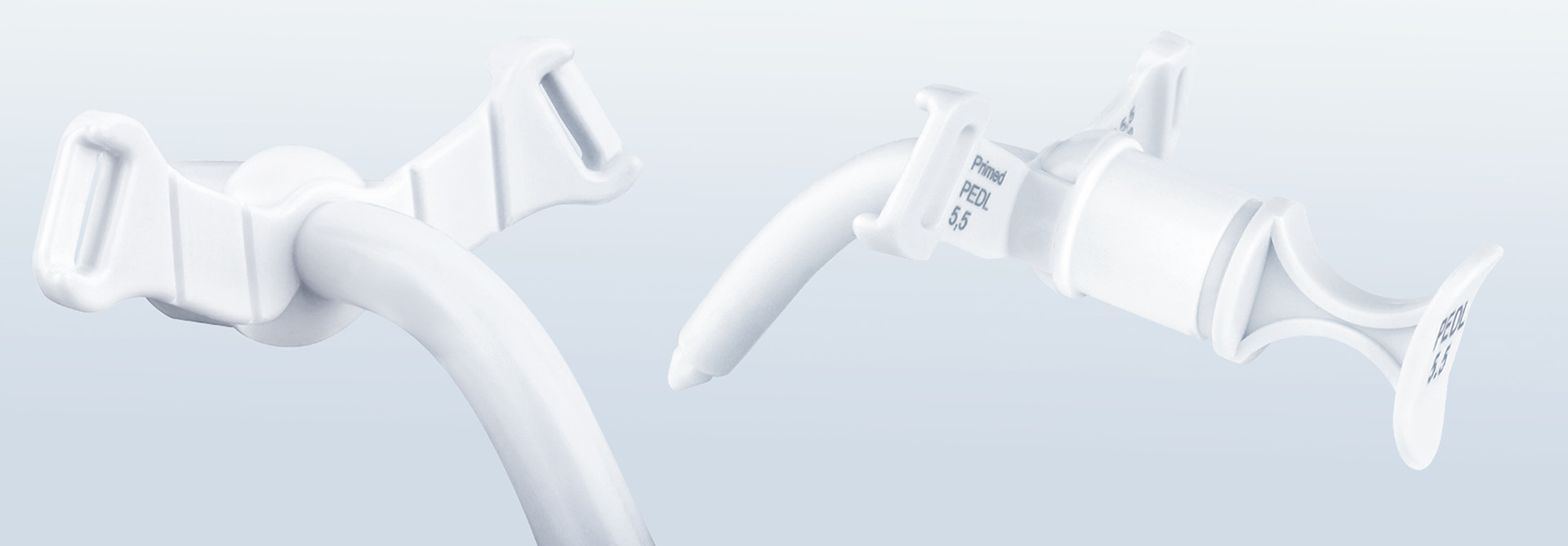

Tracheostomy tubes for neonates and children

Our tracheostomy tubes for neonates and children are specially tailored to the requirements of little patients.

They are made of patriculary soft, flexible DEHP-free material and formed atraumaticly. Due to their thin-walled design they ensure high air supply, but at the same time retain their high stability of form.

The swivelling 15 mm connector of these tracheostomy tubes enables easy connection of ventilation circuits and minimizes the transmission of tensile and shear forces to the tube.

PRODUCT FEATURES

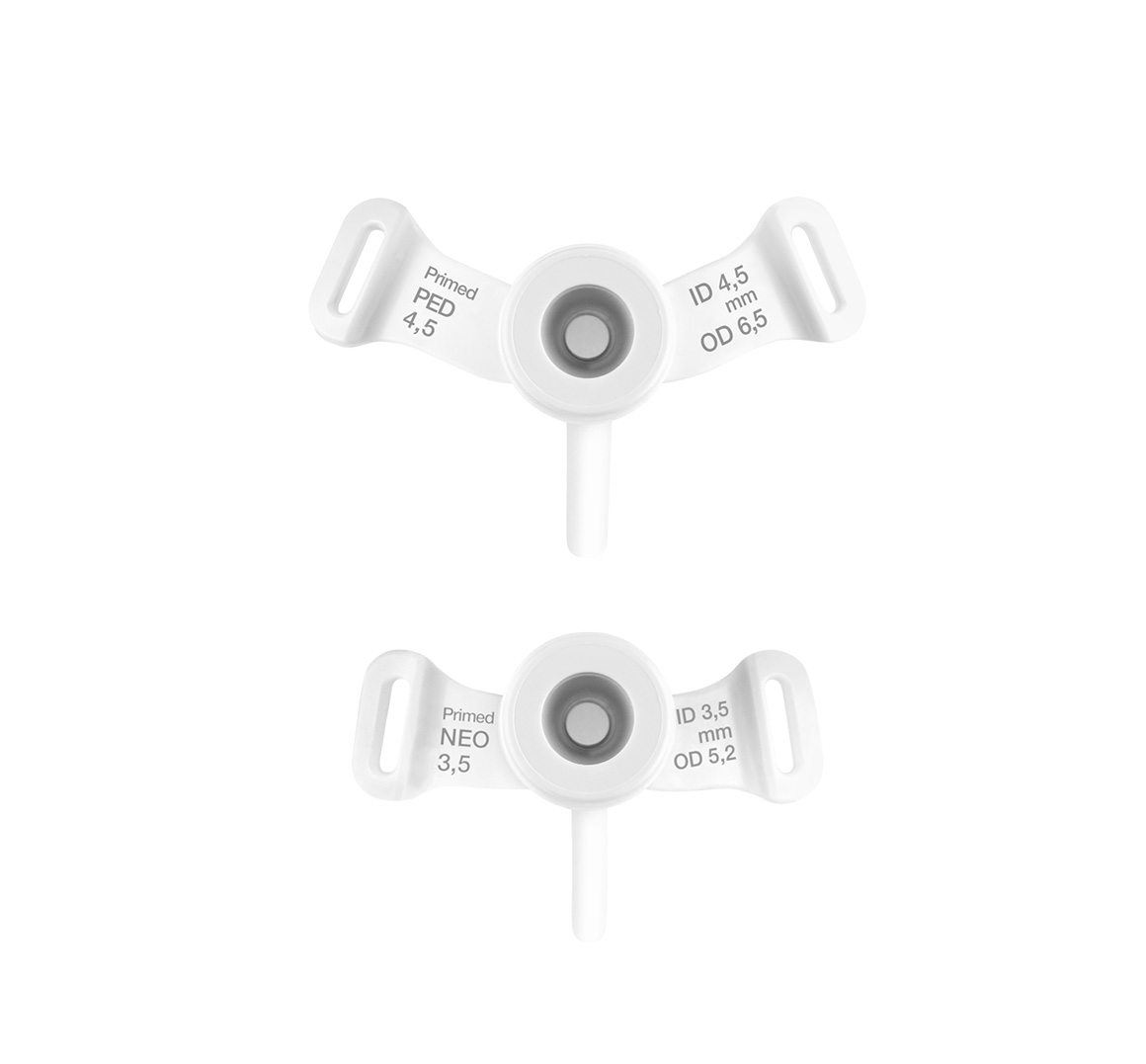

Different flange designs for neonates and children

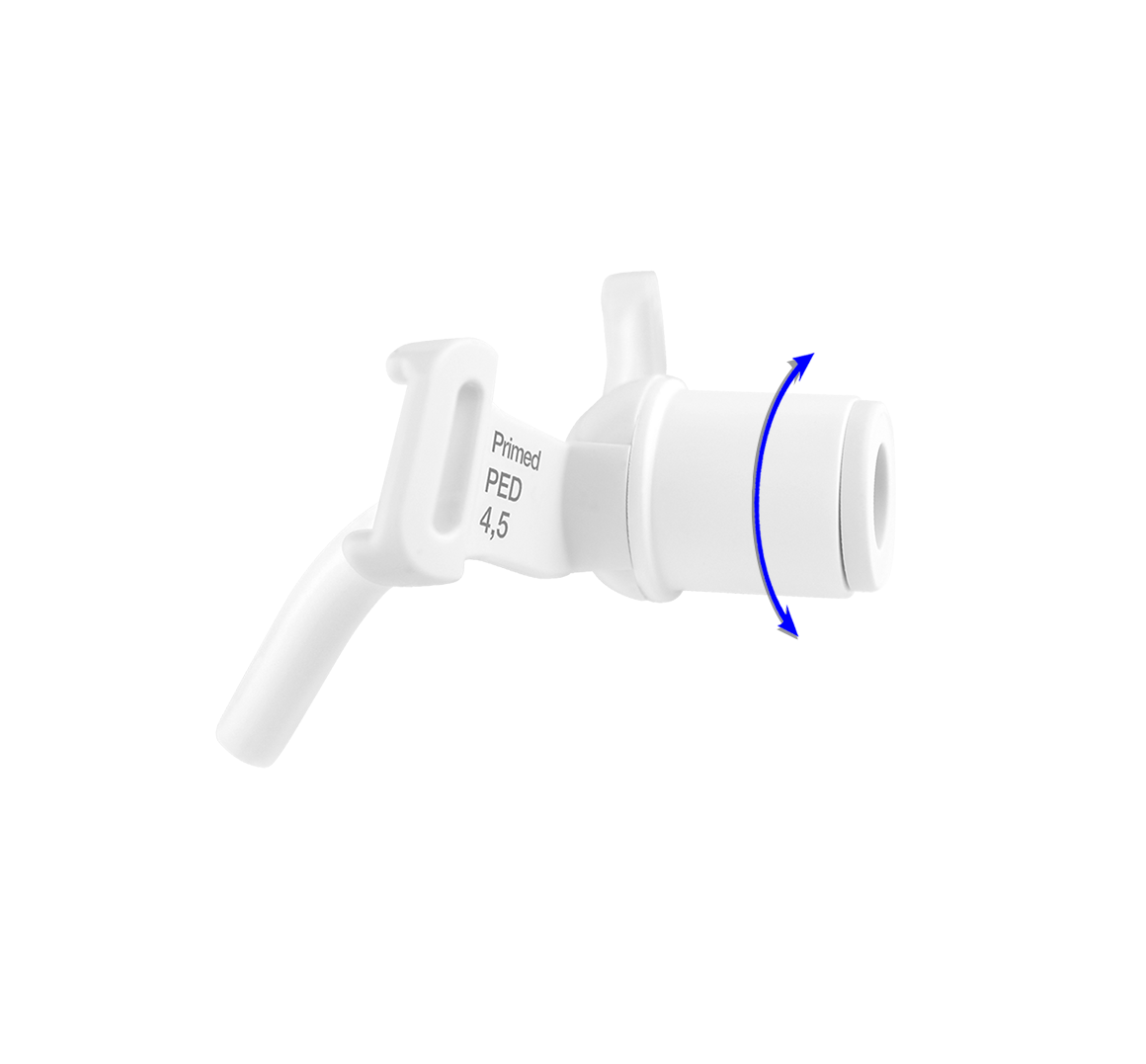

Swivelling 15 mm connector minimizes the transmission of tensile and shear forces to the tube

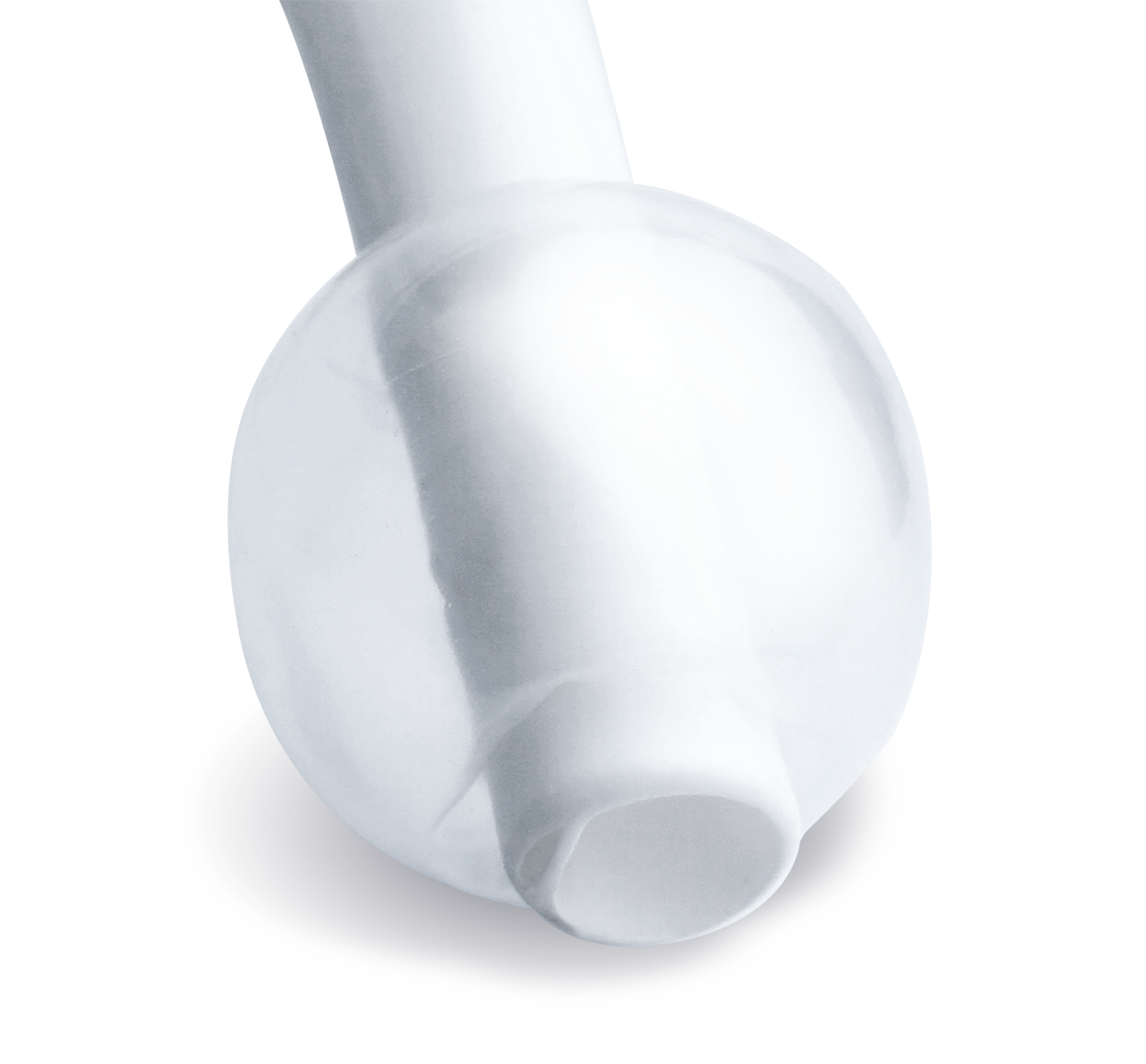

Microthin polyurethane (PU) cuff  for  cuffed models adapts ideally to the trachea and ensures effective sealing

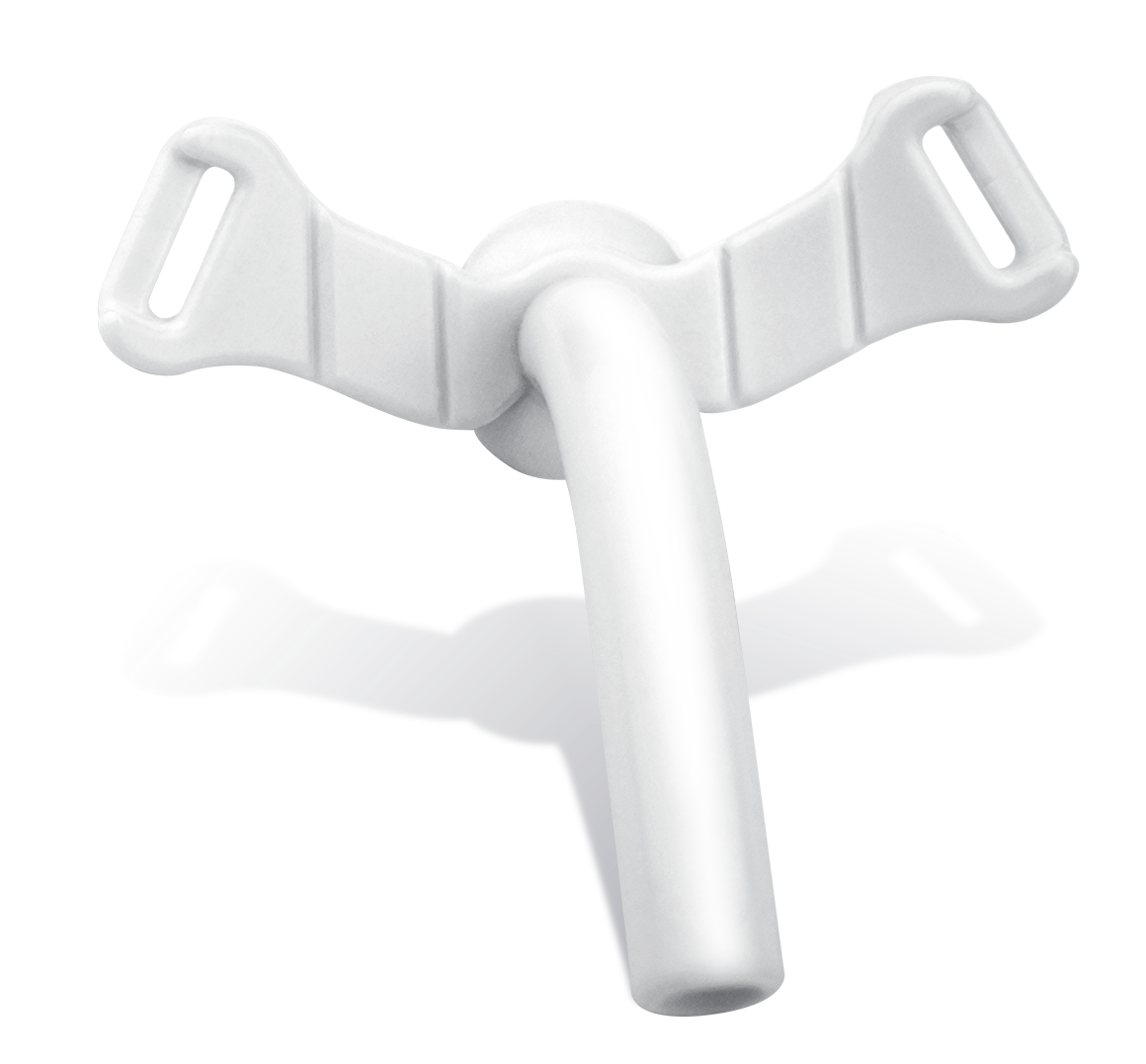

Special recesses on the flange  enable maximum flexibility

NEO Trachealkanülen für Neugeborene und Kinder

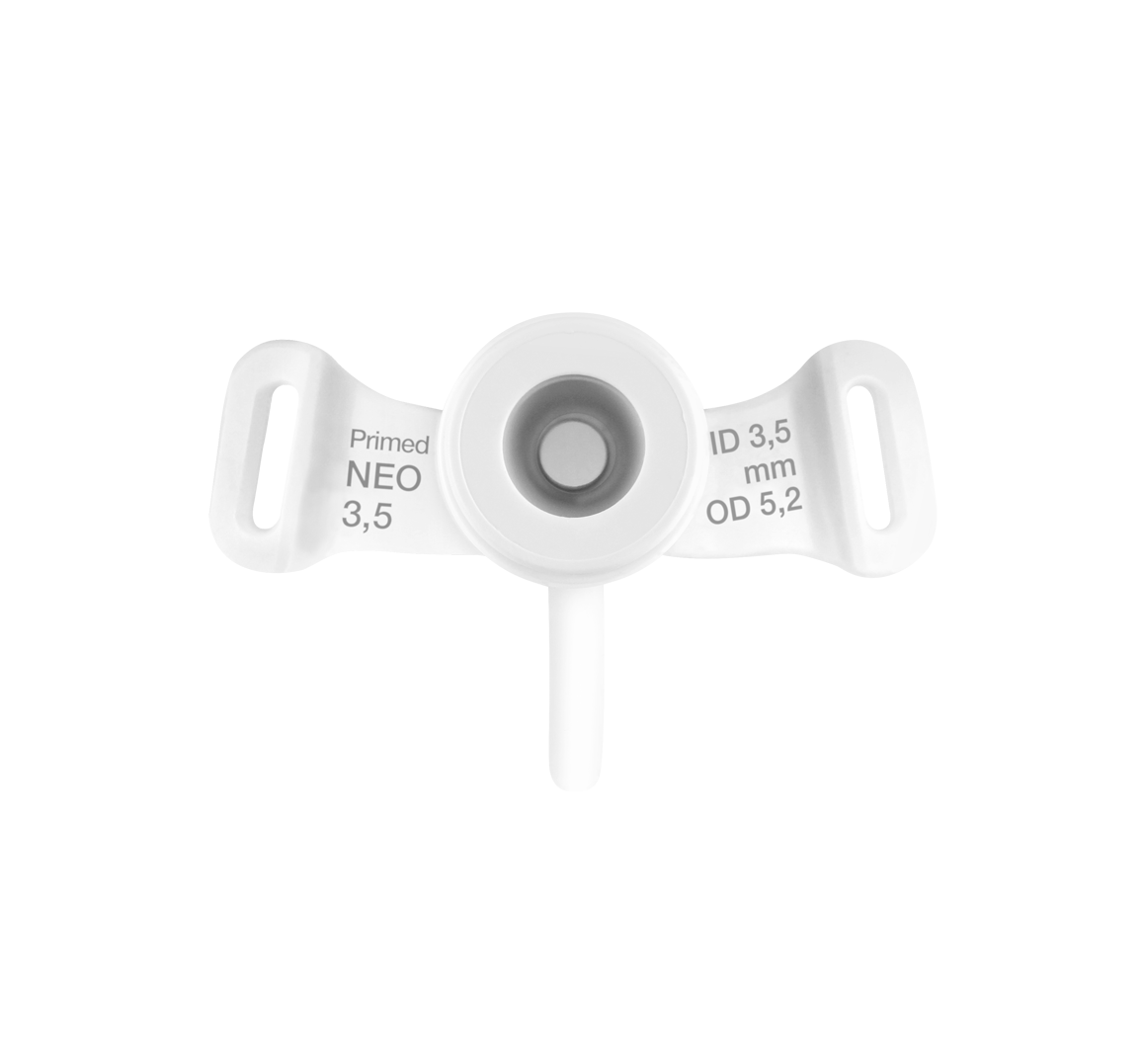

NEONATAL TRACHEOSTOMY TUBES WITHOUT CUFF

Product features:

  • Neonatal tracheostomy tube made of radiopaque material for position control, with swivelling 15 mm connector

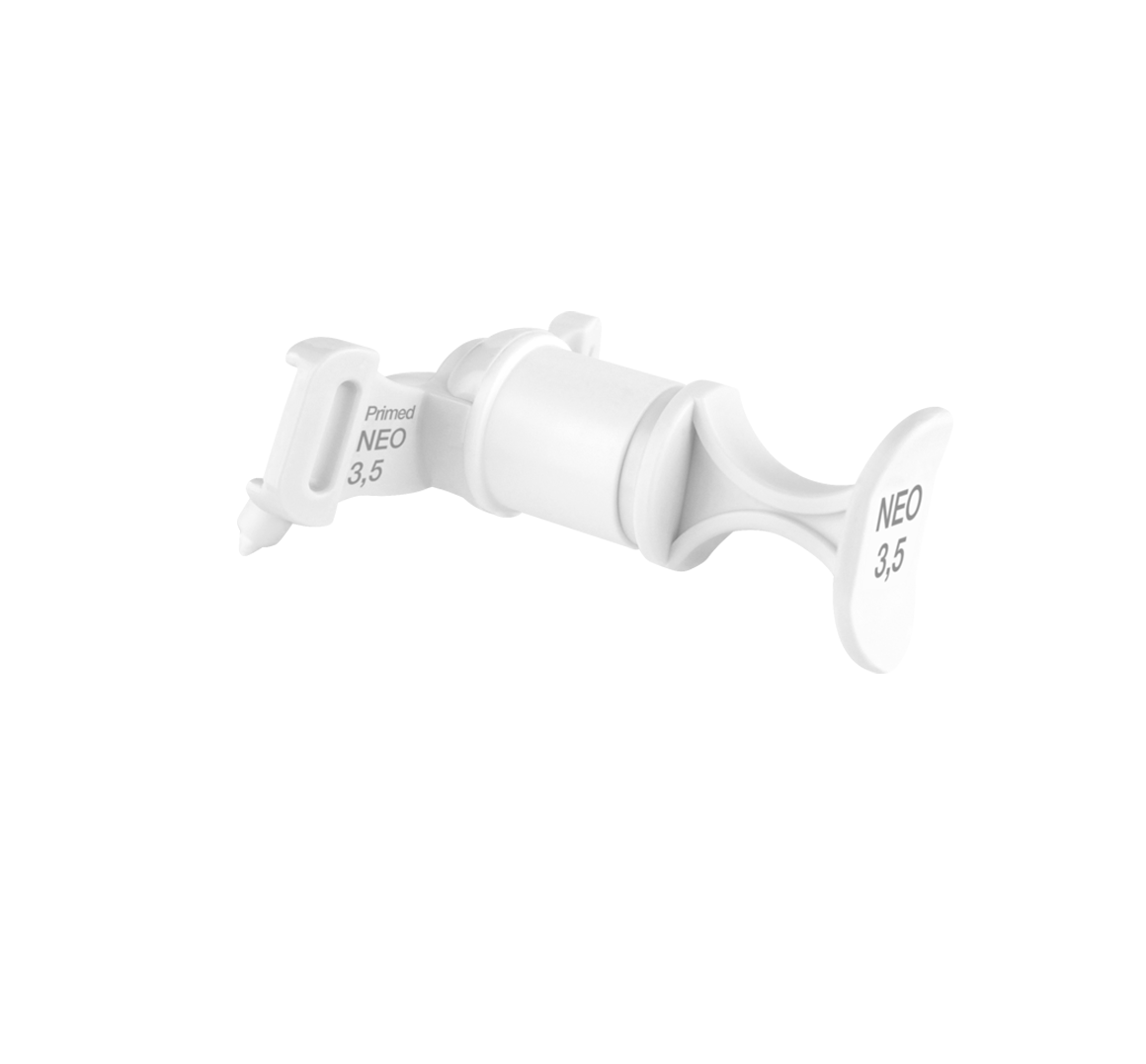

  • With obturator for easy insertion
  • Without inner cannula system in order to provide a large inner lumen
  • Cylindrical form ensures greatest possible inner diameter

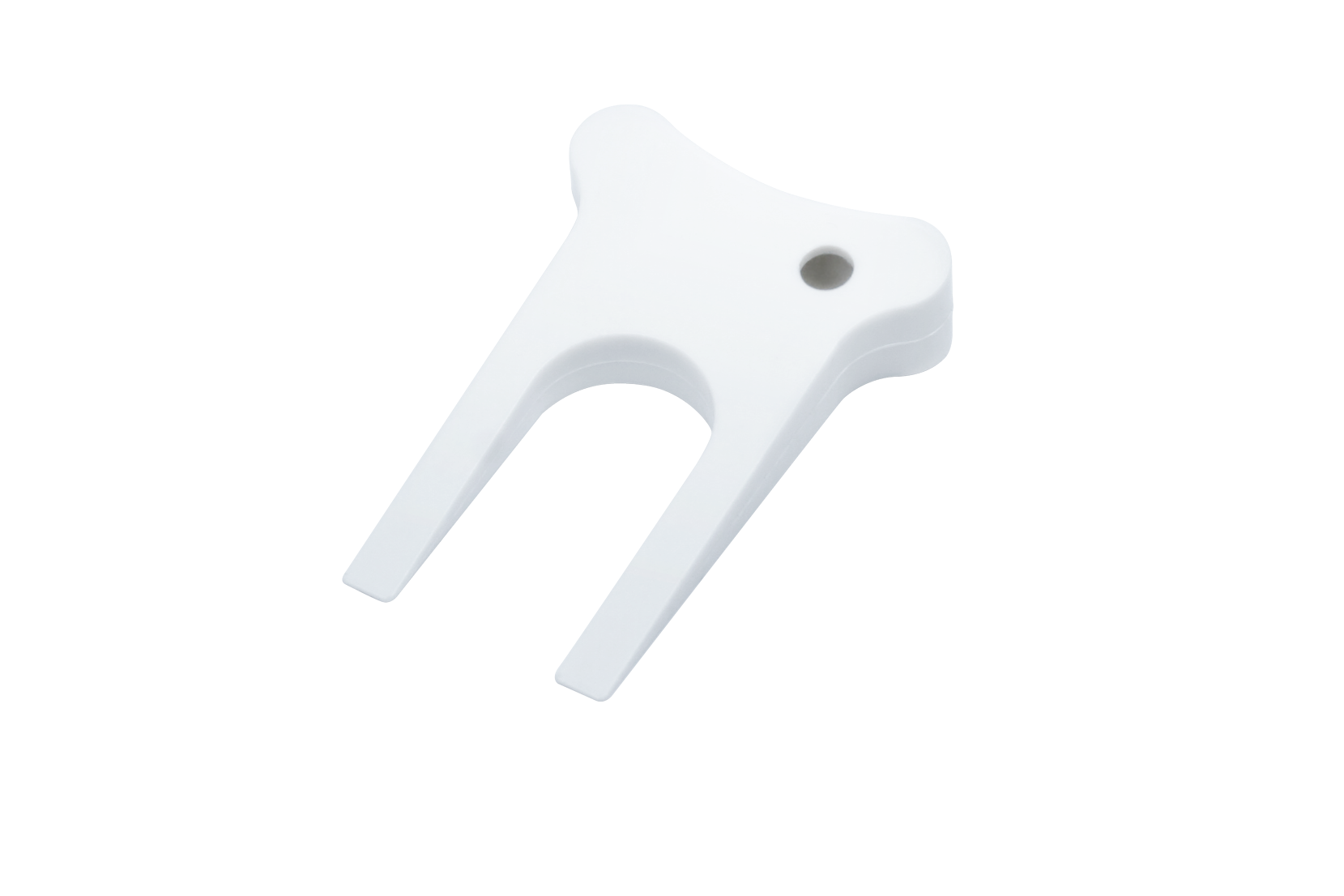

  • For removal of the swivelling connector and disconnecting of accessories the included disconnecting wegde can be used

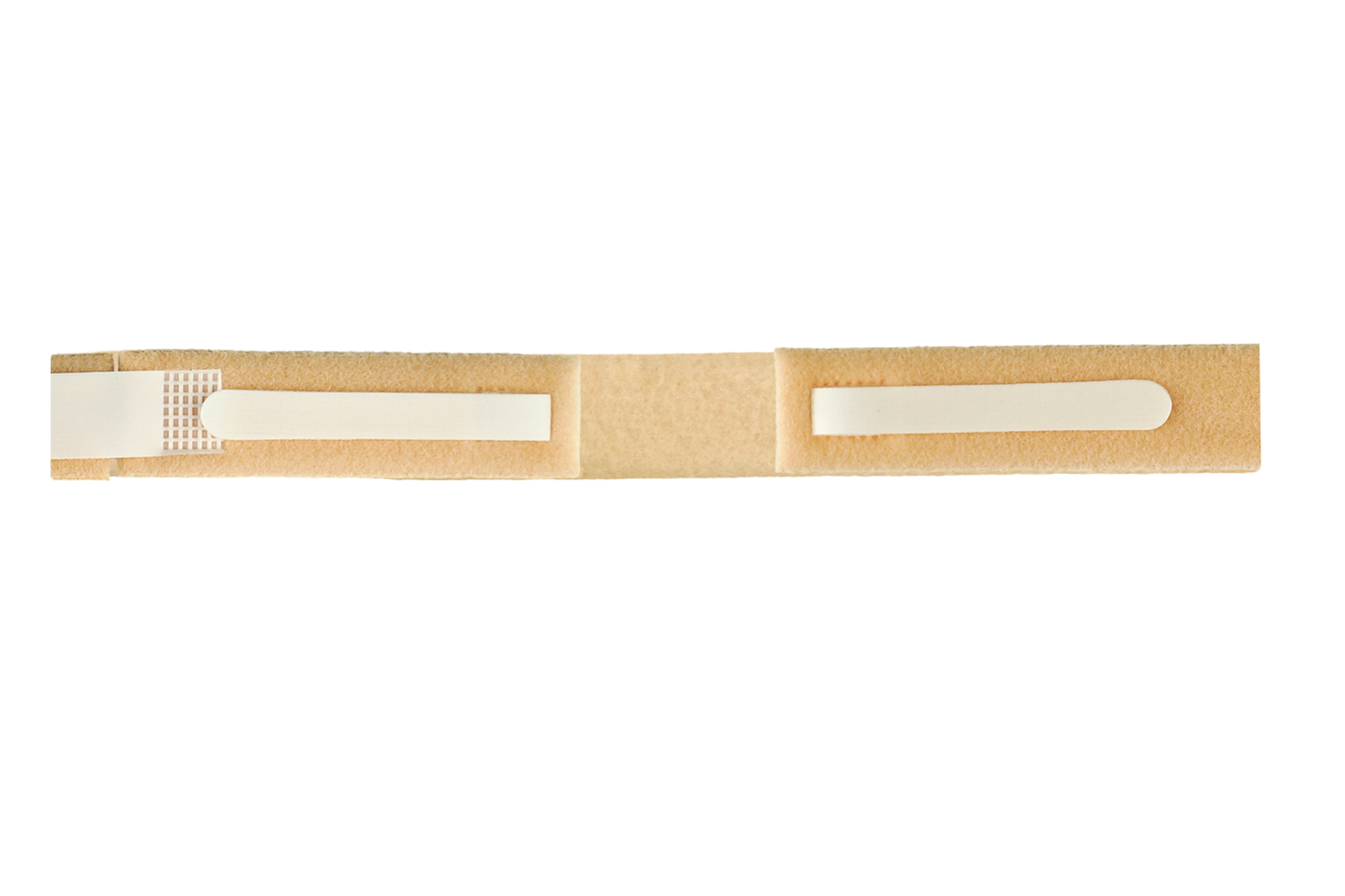

  • Including disconnecting wedge and neck strap
  • Material: PVC, latex-free, DEHP-free, bisphenol A-free, thermo-sensitive

Indication

  • Tracheostomy in neonates
  • Suitable for Radiation/MRI depending on tumour localisation

PED Trachealkanülen für Neugeborene und Kinder

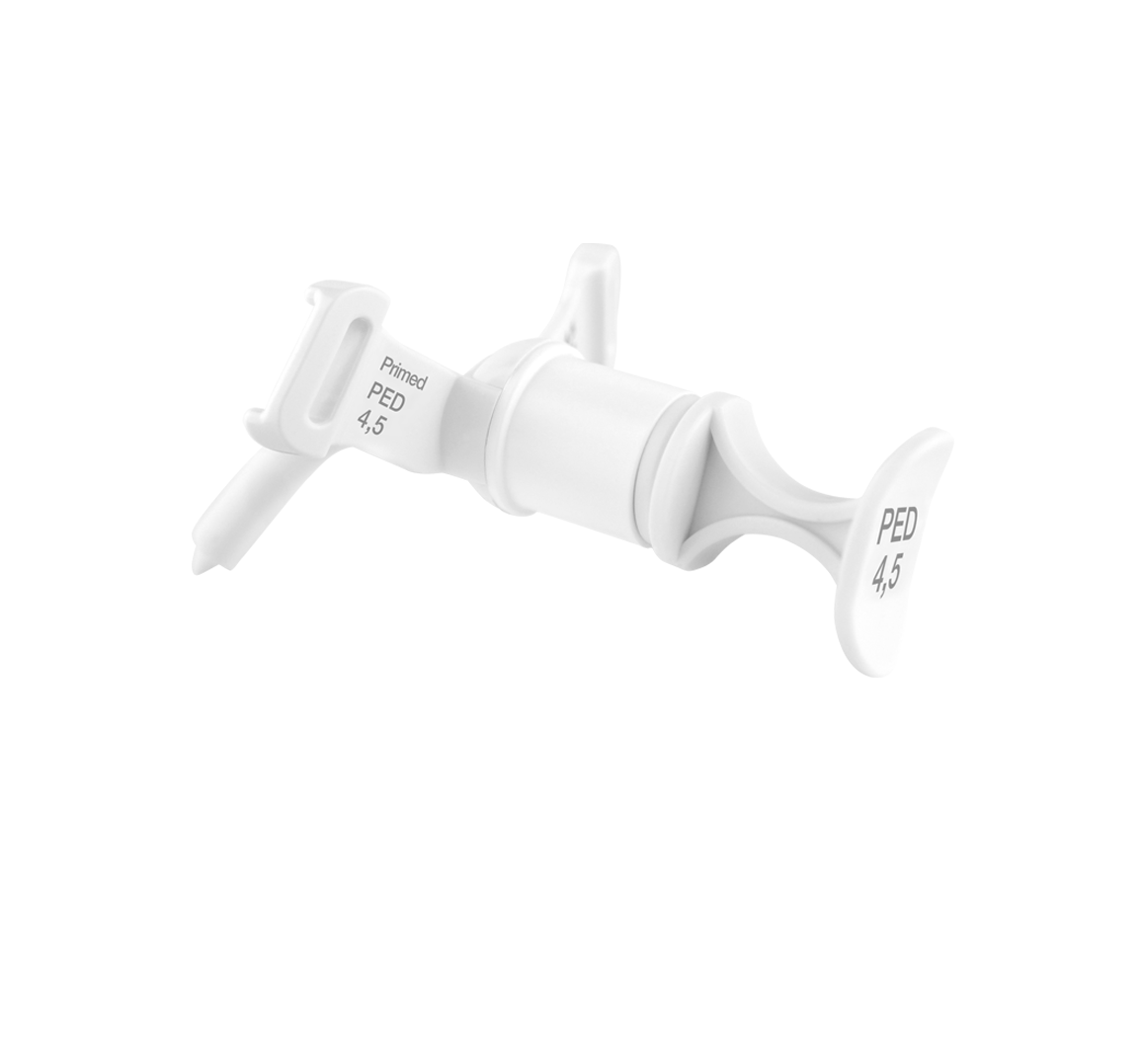

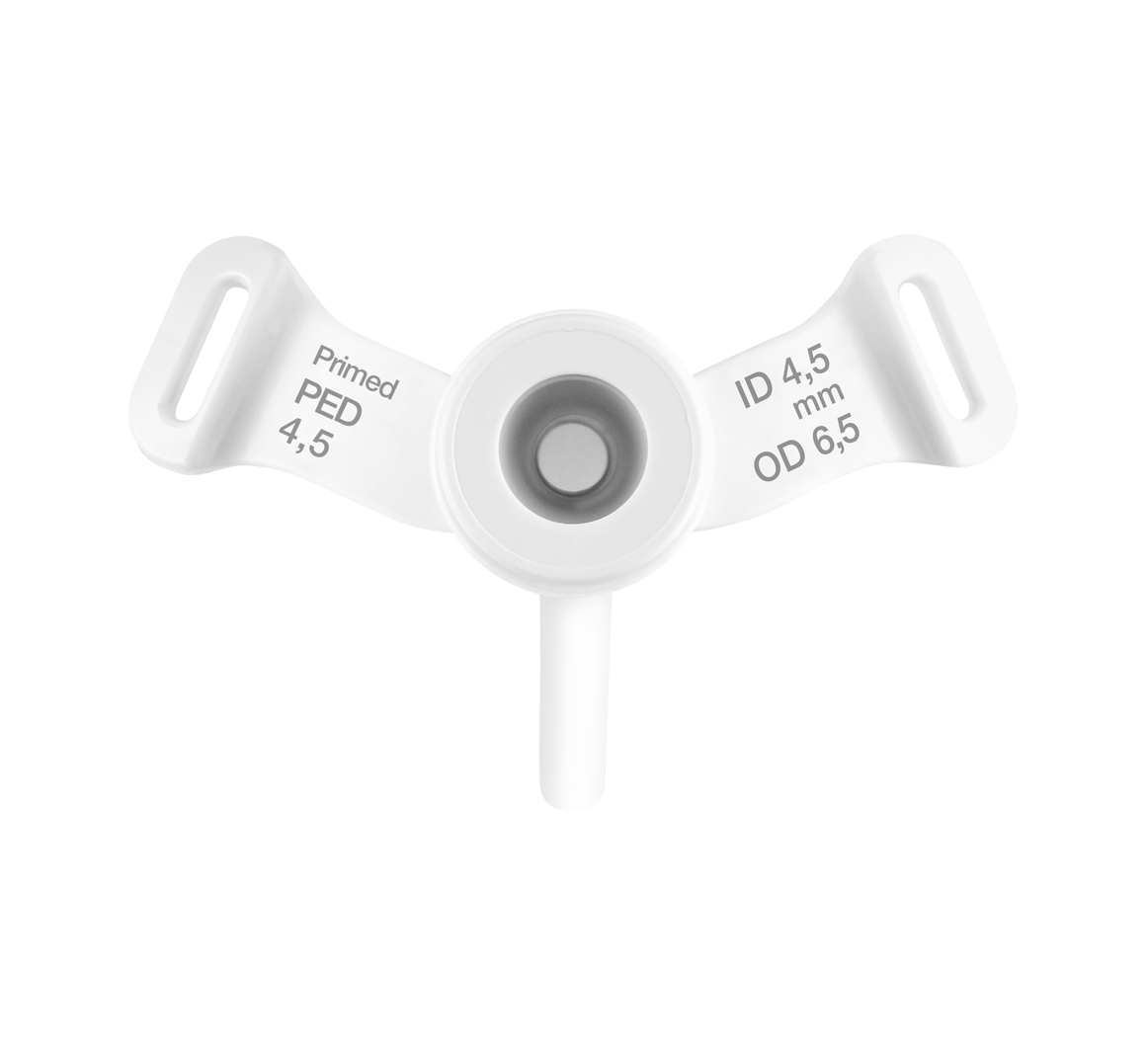

PEDIATRIC TRACHEOSTOMY TUBES WITHOUT CUFF

Product features:

  • Pediatric tracheostomy tube made of radiopaque material for position control, with swivelling 15 mm connector
  • With obturator for easy insertion
  • Without inner cannula system in order to provide a large inner lumen
  • Cylindrical form ensures greatest possible inner diameter
  • For removal of the swivelling connector and disconnecting of accessories the included disconnecting wegde can be used
  • Including disconnecting wedge and neck strap
  • Material: PVC, latex-free, DEHP-free, bisphenol A-free, thermo-sensitive

Indication

  • Tracheostomy in children
  • Suitable for radiation/MRI depending on tumour localisation

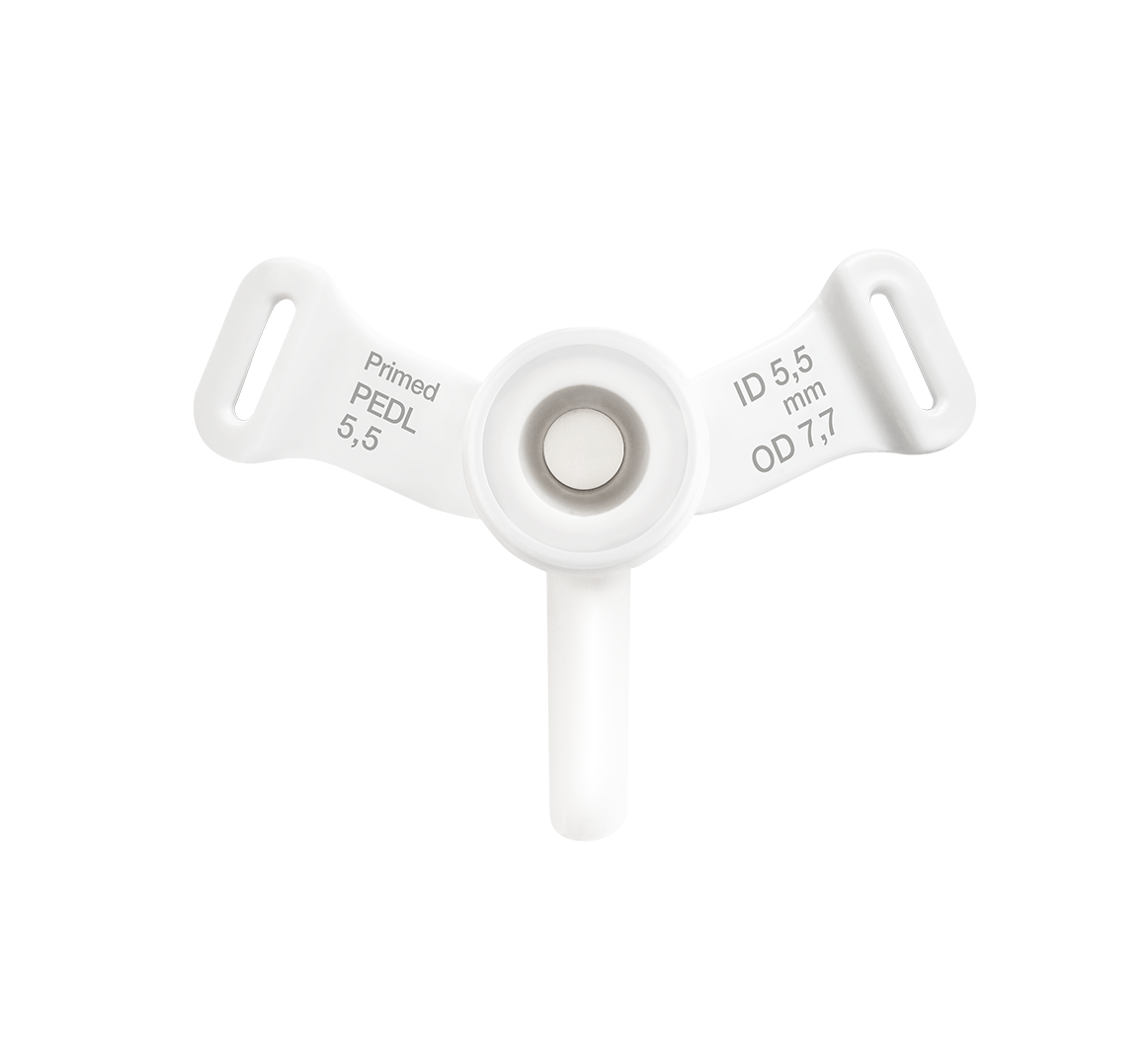

PEDL Trachealkanülen für Neugeborene und Kinder

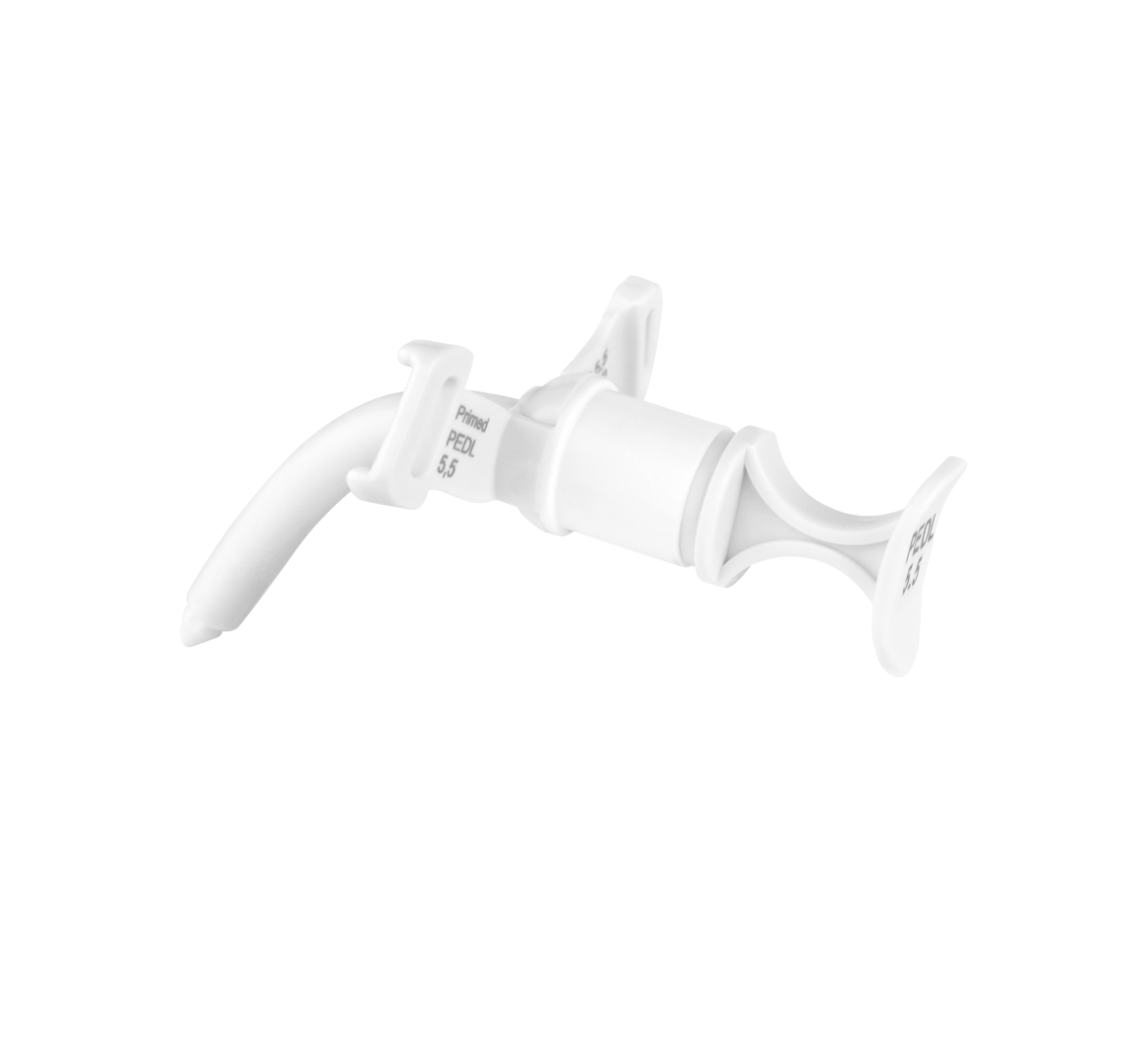

PEDIATRIC TRACHEOSTOMY TUBES WITHOUT CUFF, LONG

Product features:

  • Pediatric tracheostomy tube made of radiopaque material for position control, with swivelling 15 mm connector
  • With obturator for easy insertion
  • Without inner cannula system in order to provide a large inner lumen
  • Cylindrical form ensures greatest possible inner diameter
  • For removal of the swivelling connector and disconnecting of accessories the included disconnecting wegde can be used
  • Including disconnecting wedge and neck strap
  • Material: PVC, latex-free, DEHP-free, bisphenol A-free, thermo-sensitive

Indication

  • Tracheostomy in children
  • Suitable for radiation/MRI depending on tumour localisation
  • Tracheal stenoses/ Granuloma

PEDC Trachealkanülen für Neugeborene und Kinder

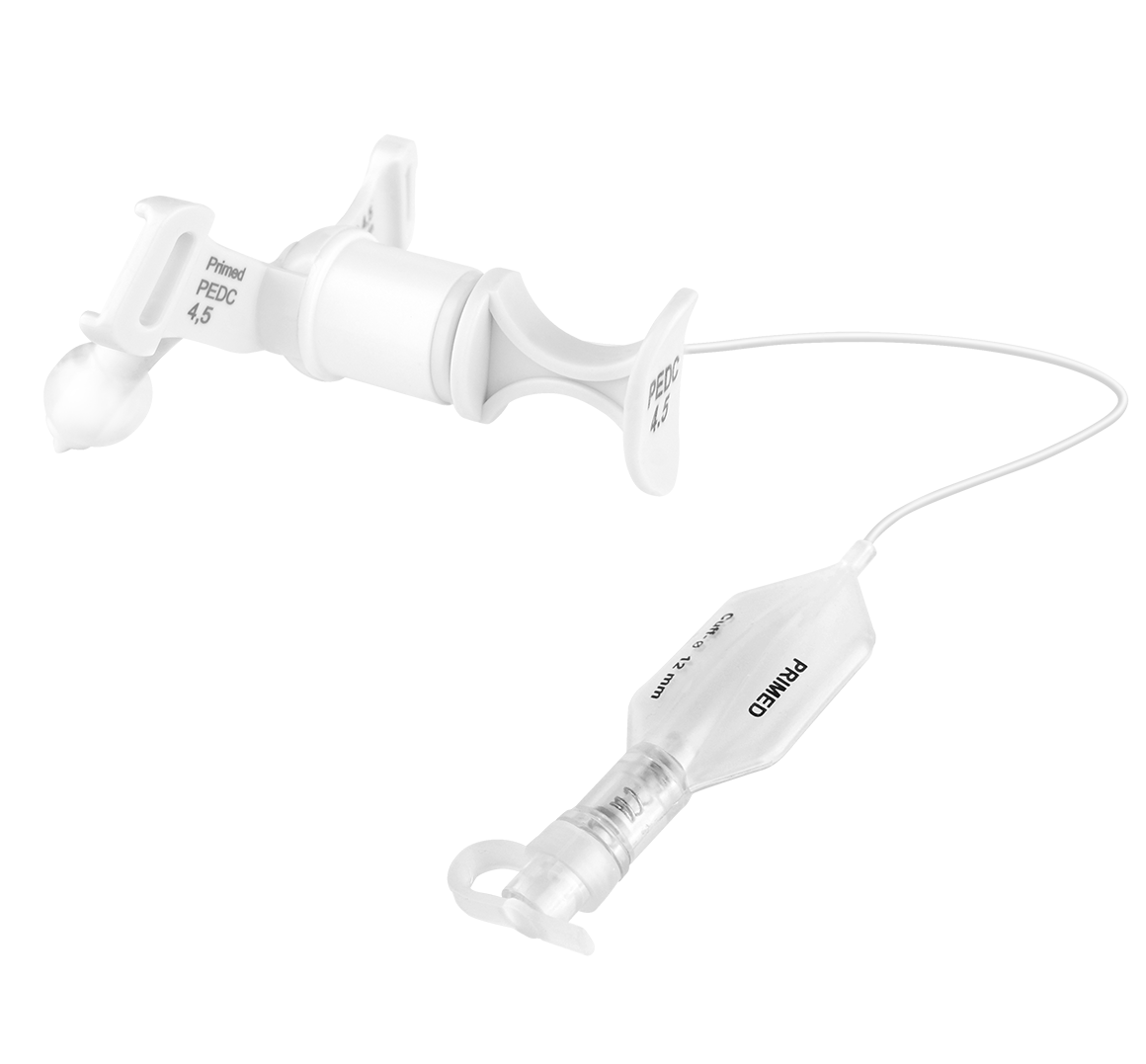

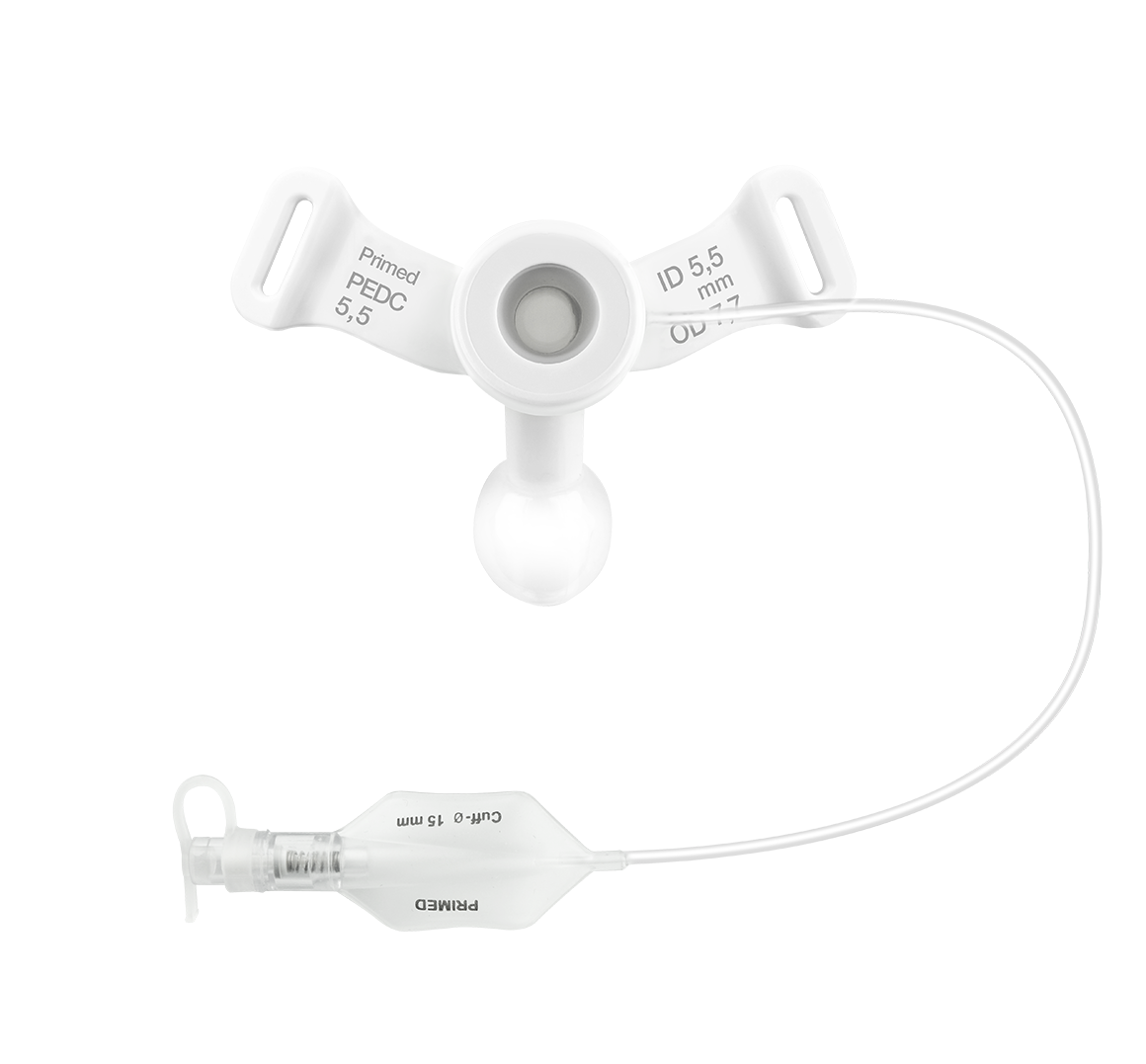

PEDIATRIC TRACHEOSTOMY TUBES WITH CUFF

Product features:

  • Pediatric tracheostomy tube made of radiopaque material for position control, with particularly thin-walled low-pressure polyurethane cuff and swivelling 15 mm connector
  • With obturator for easy insertion
  • Without inner cannula system in order to provide a large inner lumen
  • Cylindrical form ensures greatest possible inner diameter
  • For removal of the swivelling connector and disconnecting of accessories the included disconnecting wegde can be used
  • Including disconnecting wedge and neck strap
  • Material: PVC, PU, latex-free, DEHP-free, bisphenol A-free, thermo-sensitive

Indication

  • Tracheostomy in children
  • Ventilation
  • To prevent aspiration

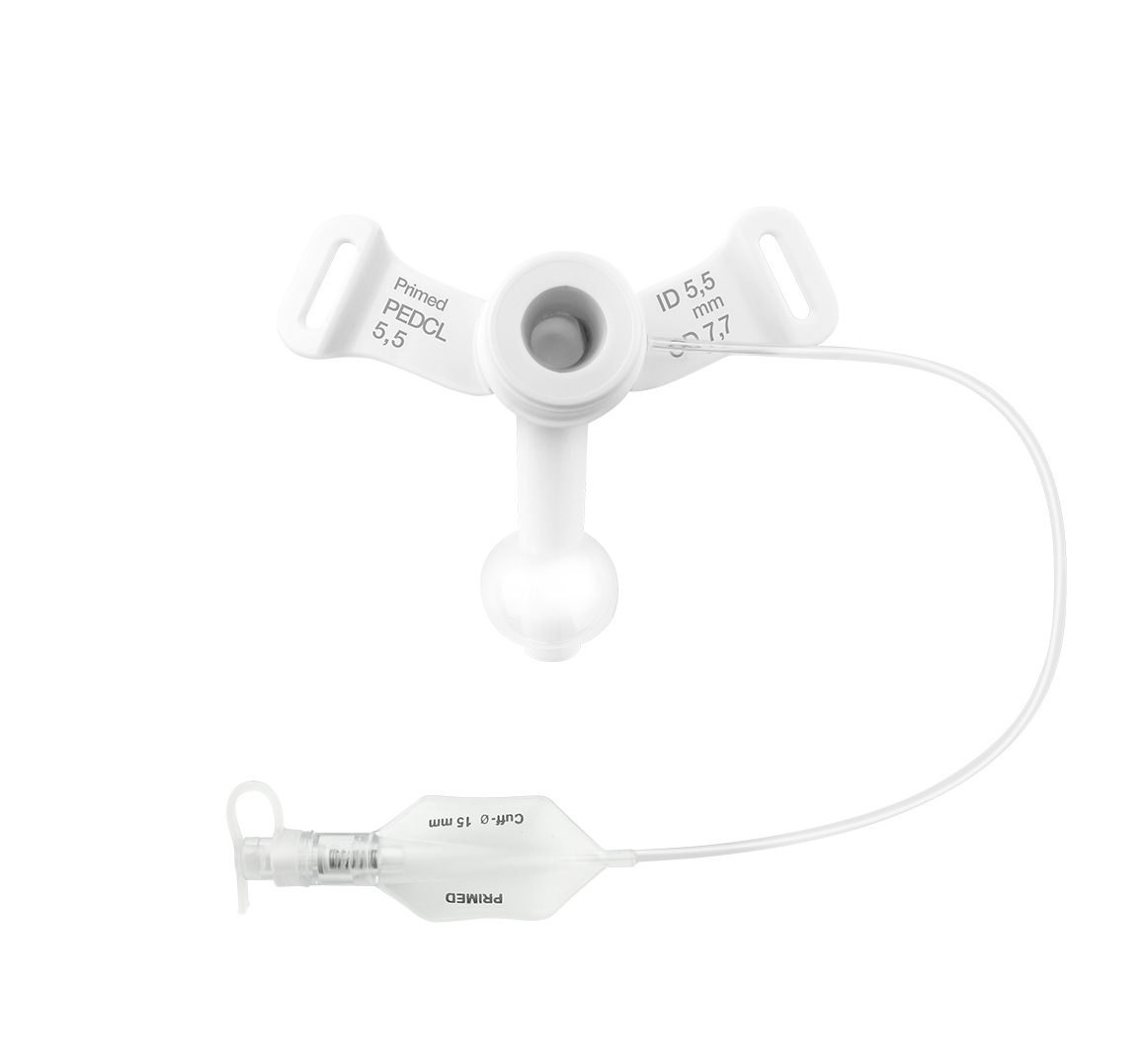

PEDCL Trachealkanülen für Neugeborene und Kinder

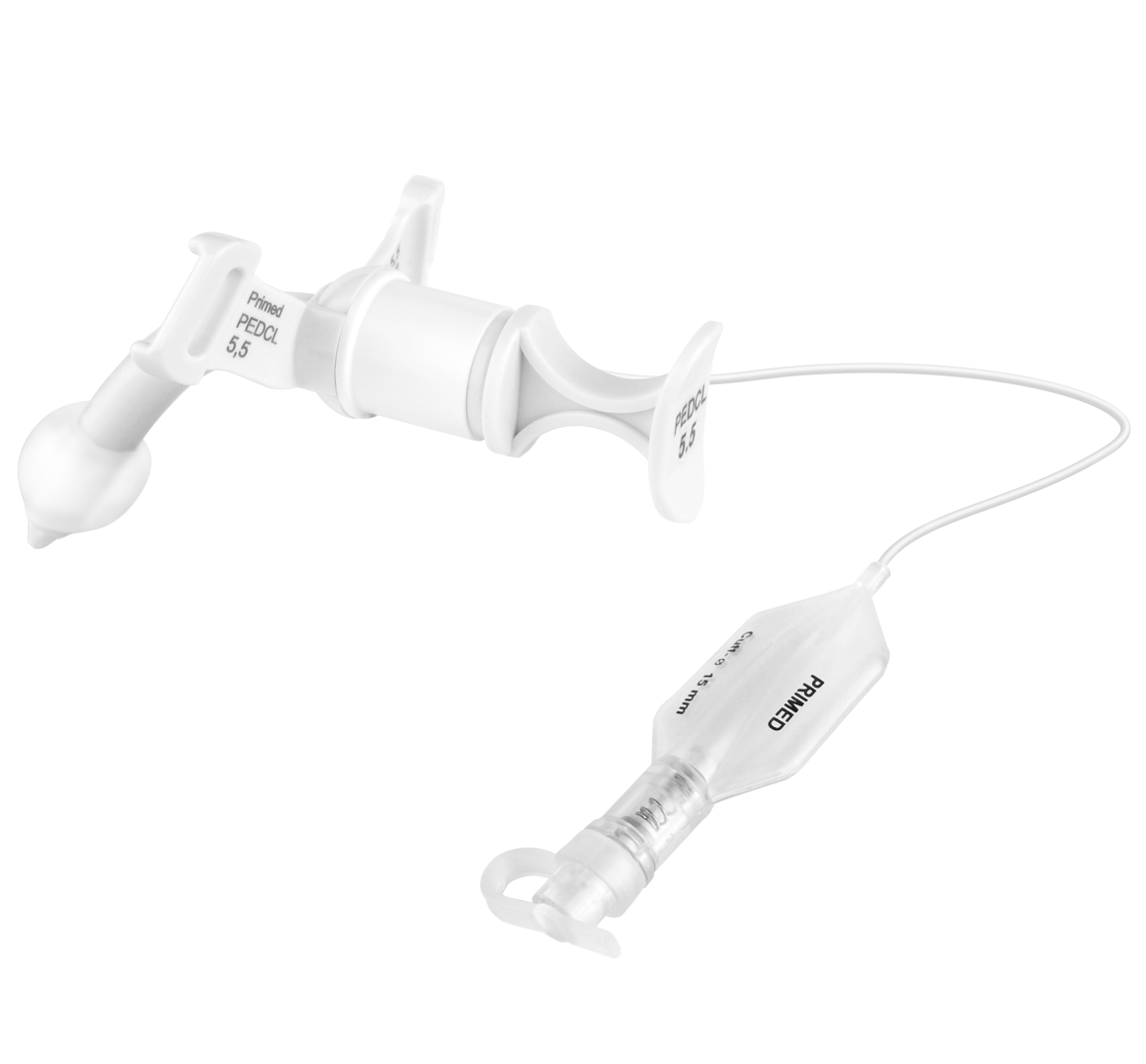

PEDIATRIC TRACHEOSTOMY TUBES WITH CUFF; LONG

Product features:

  • Pediatric tracheostomy tube made of radiopaque material for position control, with particularly thin-walled low-pressure polyurethane cuff and swivelling 15 mm connector
  • With obturator for easy insertion
  • Without inner cannula system in order to provide a large inner lumen
  • Cylindrical form ensures greatest possible inner diameter
  • For removal of the swivelling connector and disconnecting of accessories the included disconnecting wegde can be used
  • Including disconnecting wedge and neck strap
  • Material: PVC, PU, latex-free, DEHP-free, bisphenol A-free, thermo-sensitive

Indication

  • Tracheostomy in children
  • Ventilation
  • To prevent aspiration

INCLUDED IN EACH TUBE SET:

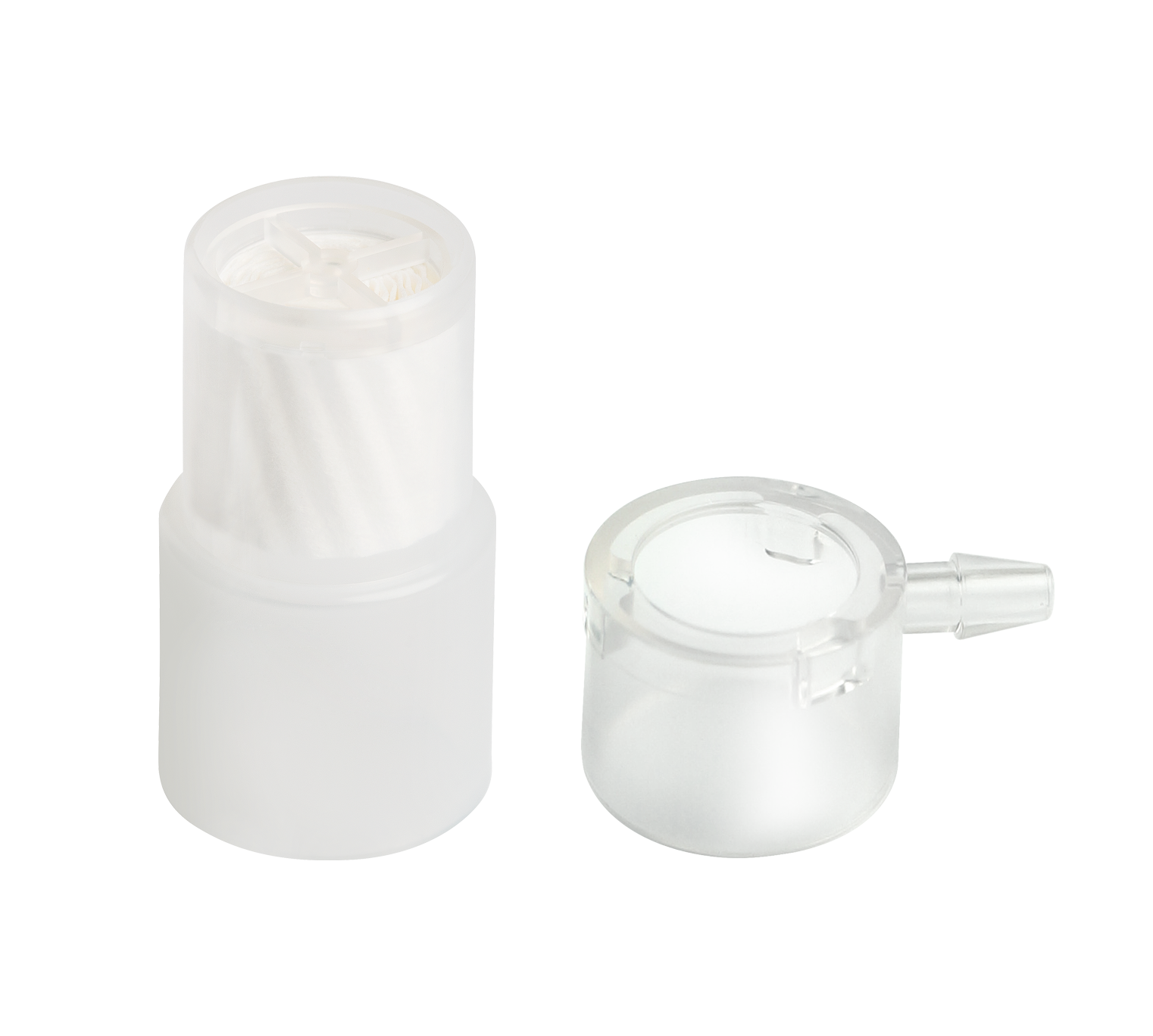

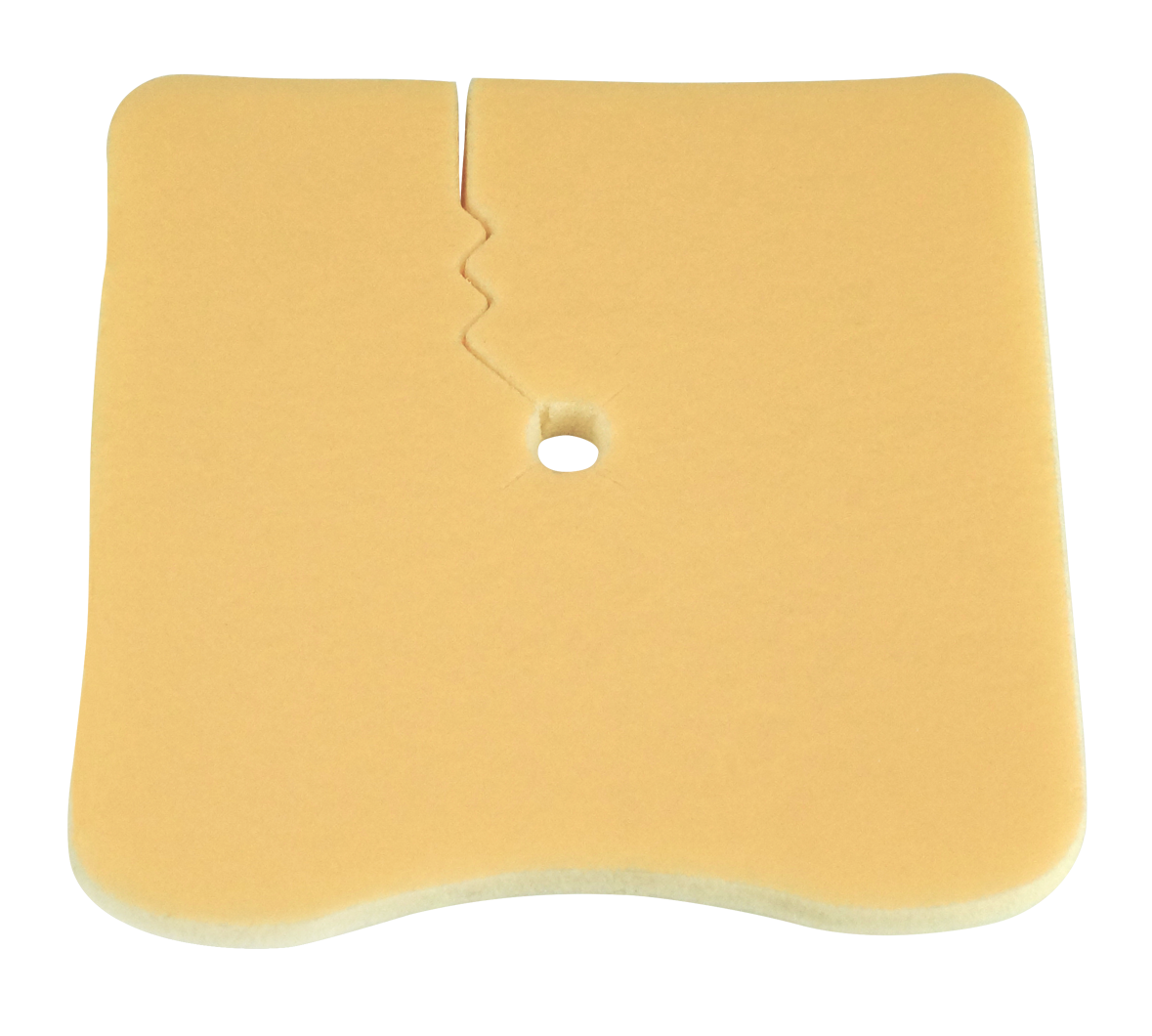

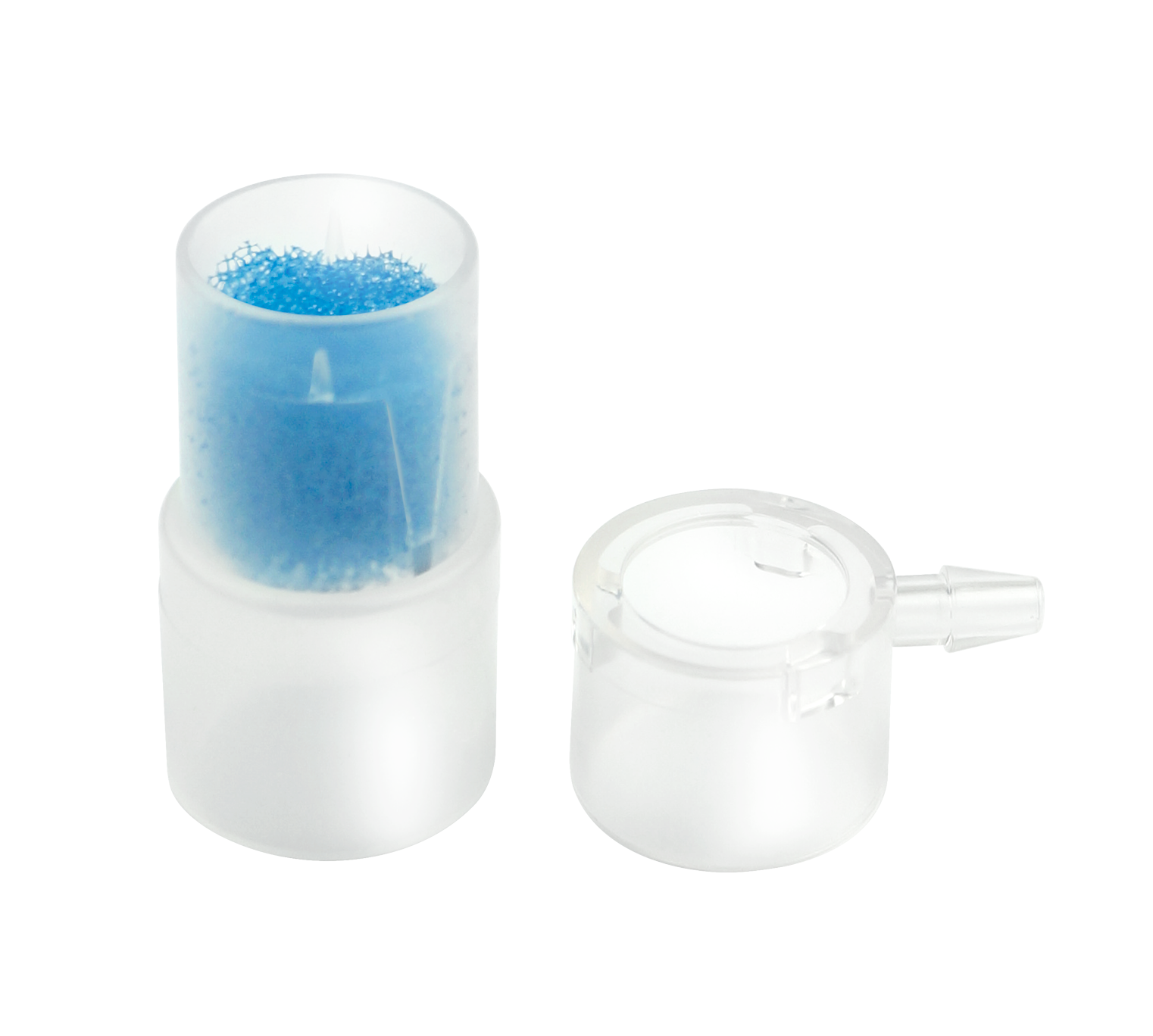

OPTIONAL ACCESSORIES
