PROLINE tracheostomy tubes

PROLINE and the extra-long PROLINE XT tracheostomy tubes are modern ventilation and therapy tubes suitable for everyday clinical practice as well as for the rehabilitation and Home Care treatment.

They are made of tissue-friendly polyurethane. Due to the excellent relationship between the inner and outer diameters they allow for maximum air flow. But despite their extremely thin walls, they ensure a high wearing comfort.

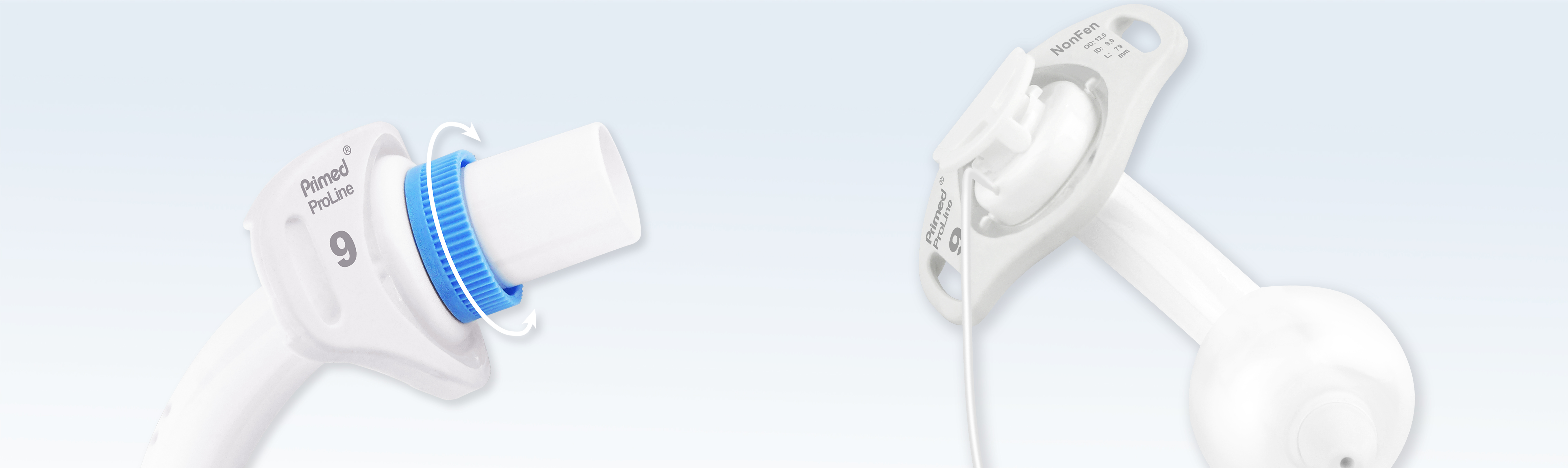

Different types of inner cannulas can be connected to the outer cannula by means of a bayonet catch. These are all equipped with a swivelling 15mm connector, which reduces tensile and shear forces and ensures stable positioning.

For all cuffed models an advanced microthin cylindrical polyurethane cuff is used which adapts ideally to the trachea.
Secretion that accumulates above the cuff, can be removed through an integrated subglottic suction line, featured on our SUCTION models. This suction line is embedded perfectly into the outer cannula to avoid pressure necrosis.

ProLine Trachealkanülen

BASIC

ProLine Trachealkanülen Basic

Product features:

  • Outer cannula with bayonet catch
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 2 inner cannulas with white bayonet ring and swivelling 15 mm connector

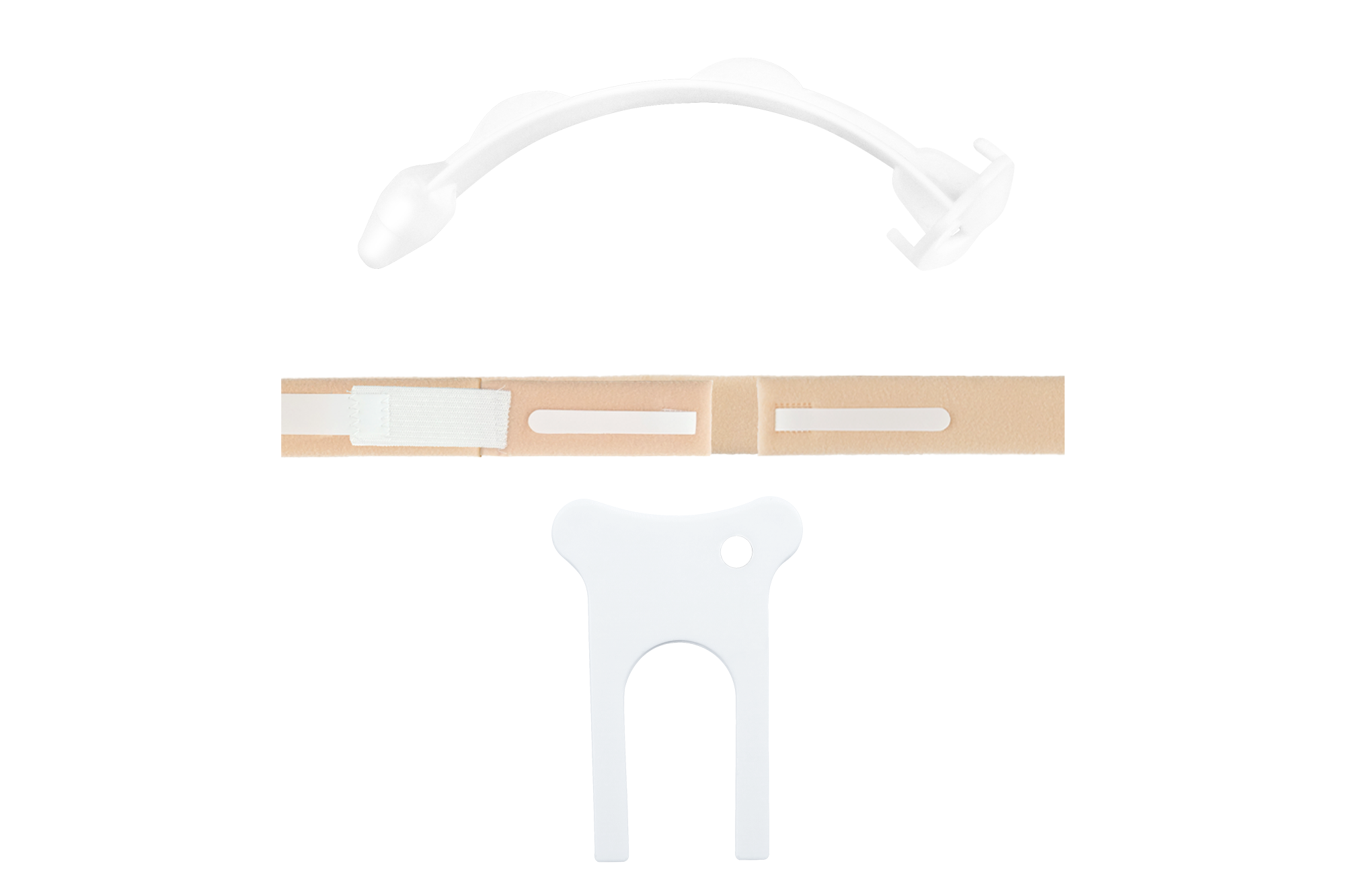

  • Including obturator, neck strap and disconnecting wedge
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy/Laryngectomy
  • Radiation/MRI
Open product list

ProLine Trachealkanülen

BASIC VOICE

ProLine Trachealkanülen Basic Voice

Product features:

  • Sieved outer cannula with bayonet catch
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 1 fenestrated inner cannula with blue bayonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve
  • 1 inner cannulas with white bayonet ring and swivelling 15 mm connector

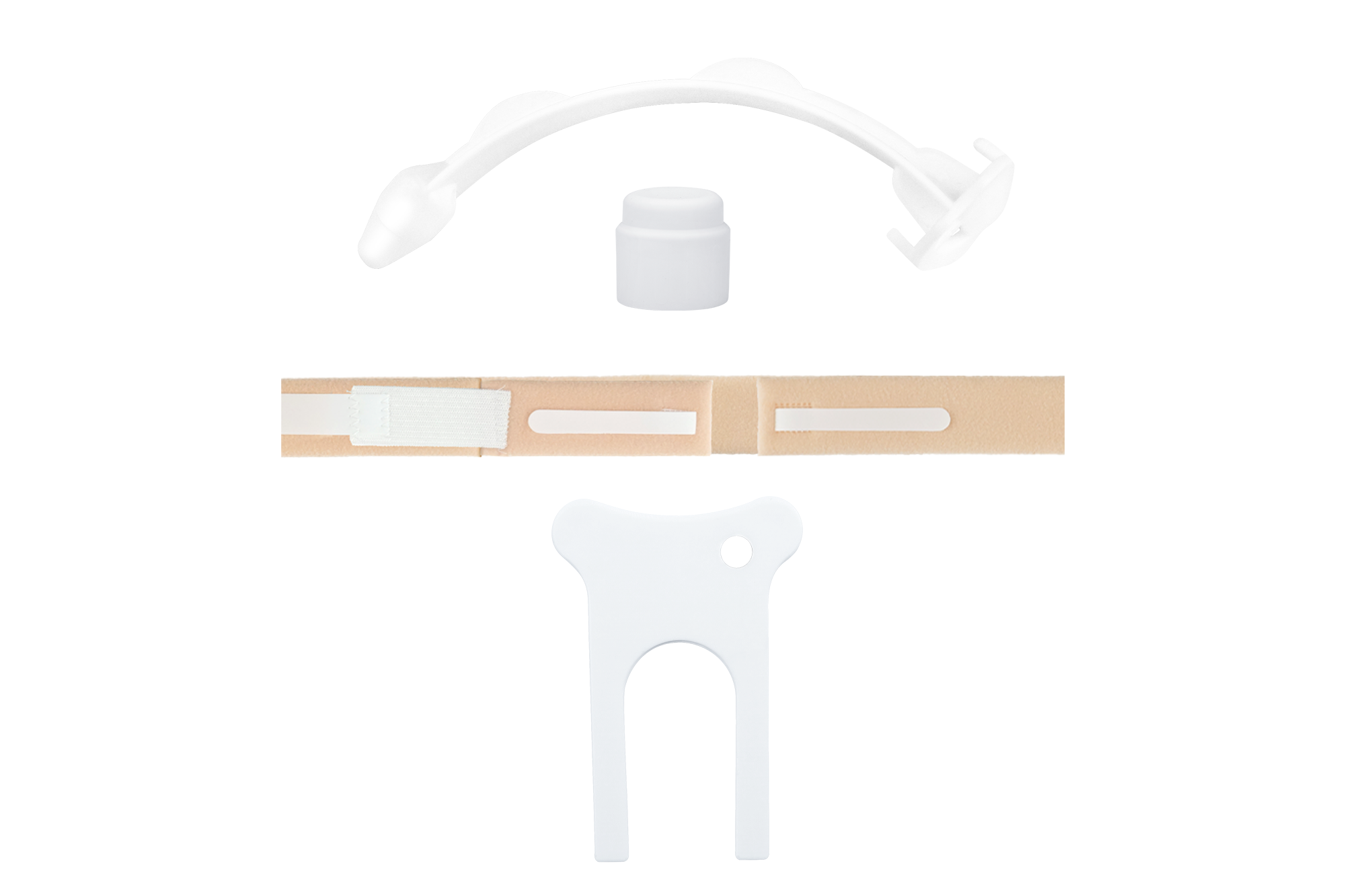

  • Including obturator, neck strap, disconnecting wedge, decannulation cap and speaking valve
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy
  • Phonation
  • Radiation/MRI
open product list

ProLine Trachealkanülen

CUFF

ProLine Trachealkanülen Cuff

Product features:

  • Outer cannula with bayonet catch and particularly thin-walled polyurethane (PU) low-pressure cuff
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 2 inner cannulas with white bayonet ring and swivelling 15 mm connector
  • Including obturator, neck strap and disconnecting wedge
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy/Laryngectomy
  • Aspiration
  • Ventilation
Open product list

ProLine Trachealkanülen

CUFF VOICE

ProLine Trachealkanülen Cuff Voice

Product features:

  • Sieved outer cannula with bayonet catch and particularly thin-walled polyurethane (PU) low-pressure cuff
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 1 fenestrated inner cannula with blue bayonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve
  • 1 inner cannulas with white bayonet ring and swivelling 15 mm connector
  • Including obturator, neck strap, disconnecting wedge, decannulation cap and speaking valve
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy
  • Phonation
  • Ventilation
Open product list

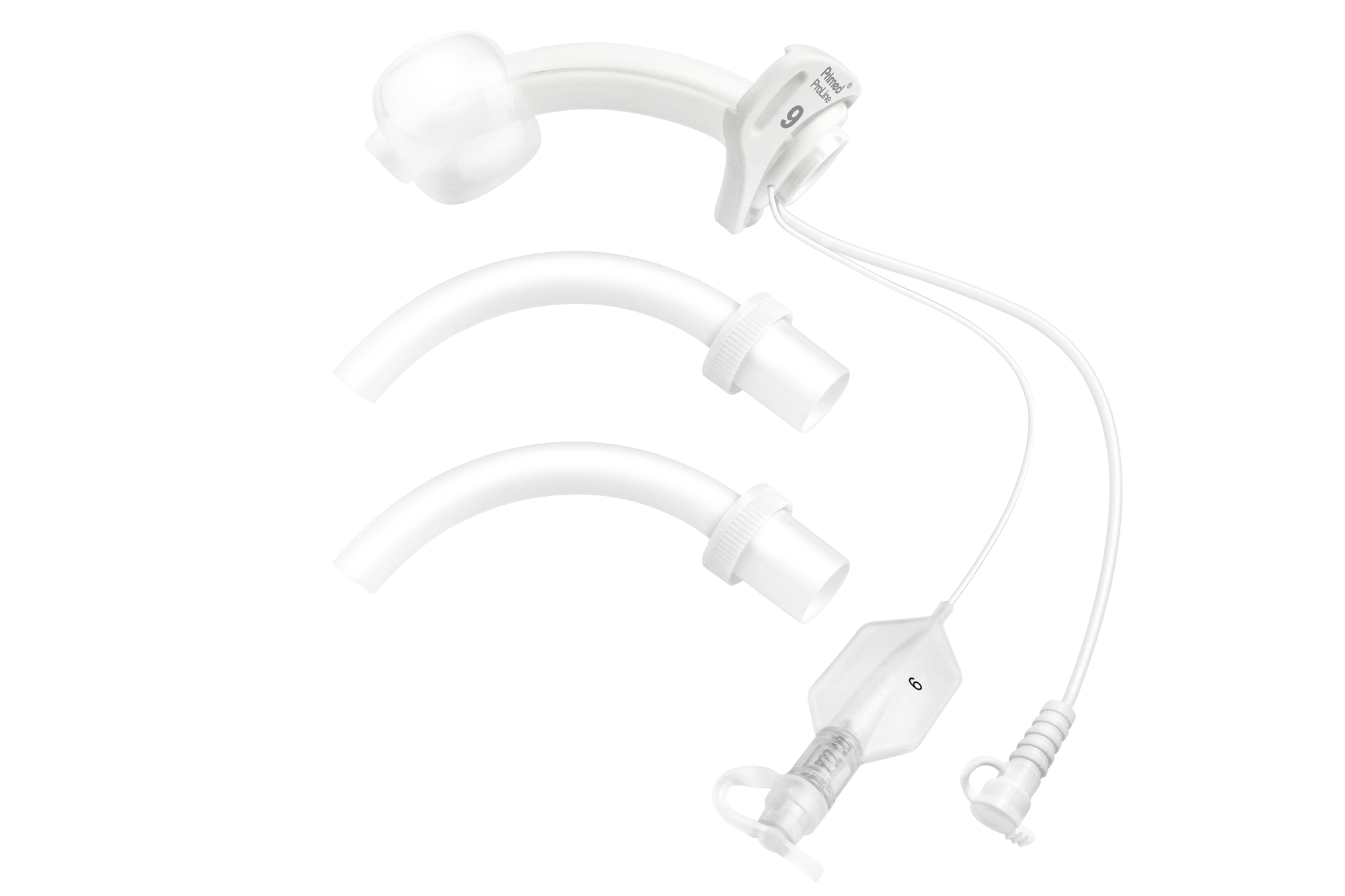

ProLine Trachealkanülen

SUCTION

Product features:

  • Outer cannula with bayonet catch, particularly thin-walled polyurethane (PU) low-pressure cuff and subglottic suction function (features an integrated suction line for on demand subglottic secretion suctioning above the cuff)
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 2 inner cannulas with white bayonet ring and swivelling 15 mm connector
  • Including obturator, neck strap, disconnecting wedge and funnel connector
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy/Laryngectomy
  • Aspiration
  • Ventilation
Open product list

ProLine Trachealkanülen

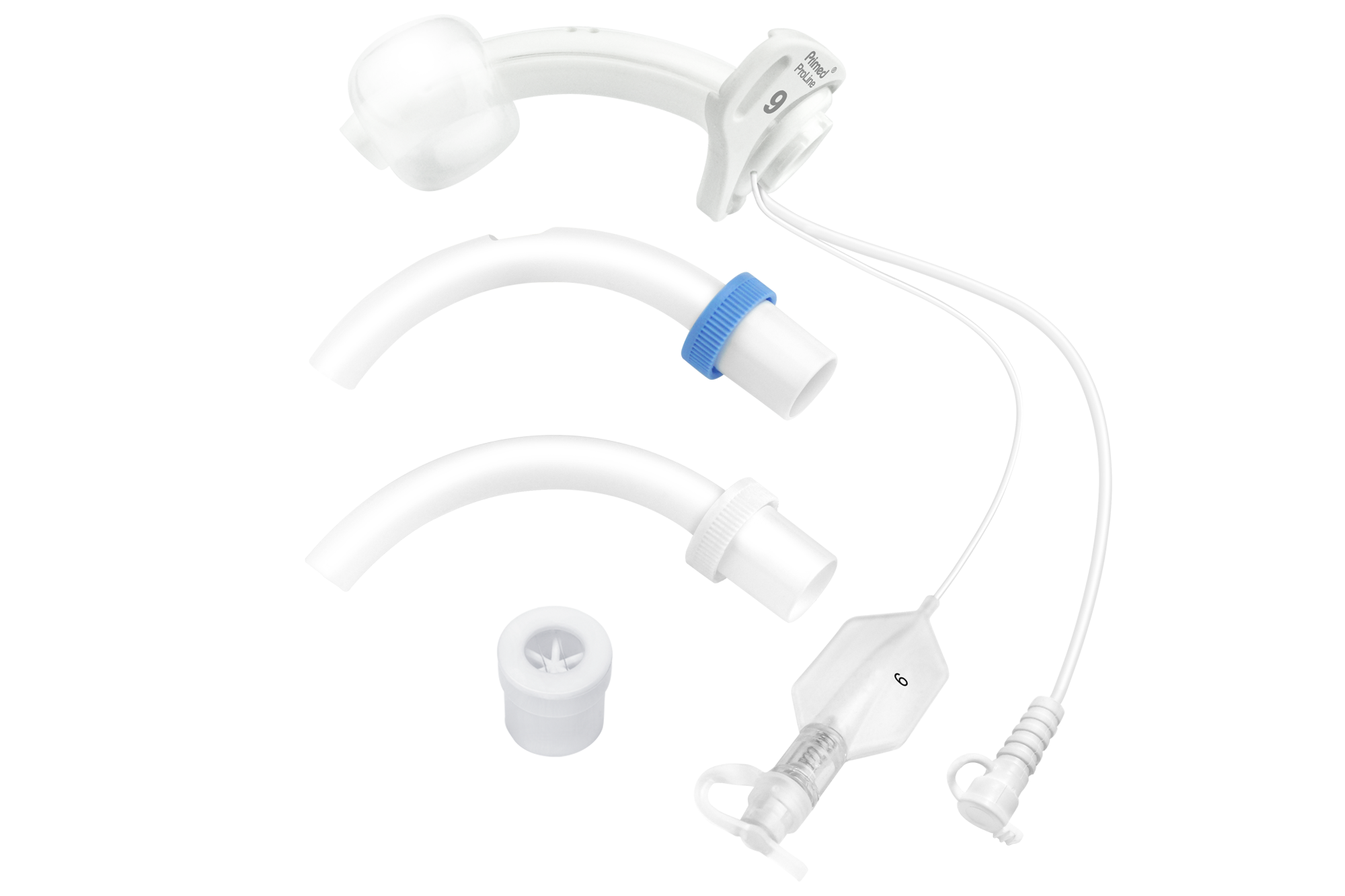

SUCTION VOICE

Product features:

  • Sieved outer cannula with bayonet catch, particularly thin-walled polyurethane (PU) low-pressure cuff and subglottic suction function (features an integratted suction line for subglottic secretion suctioning on demand)
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 1 fenestrated inner cannula with blue bayonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve
  • 1 inner cannulas with white bayonet ring and swivelling 15 mm connector

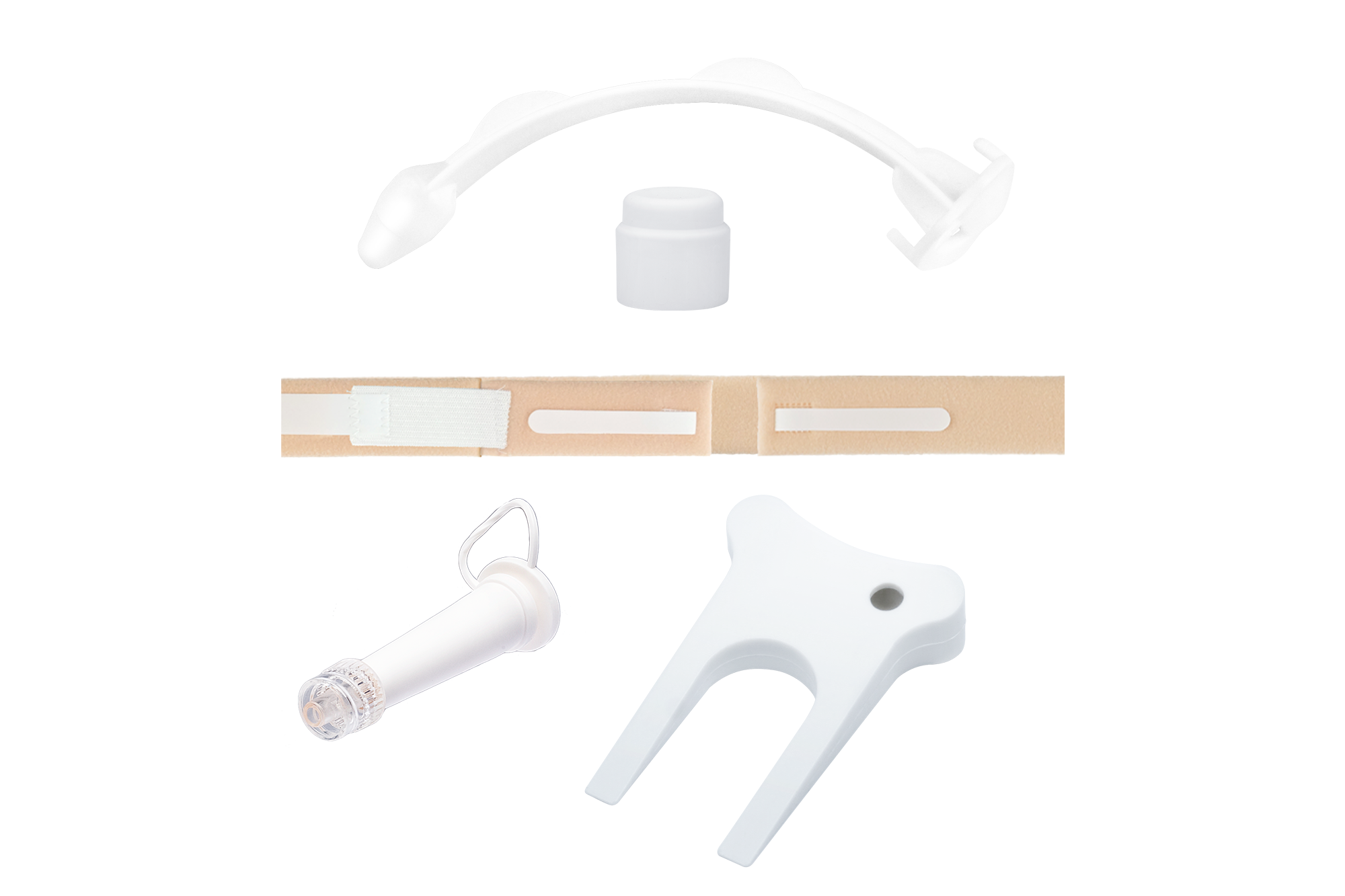

  • Including obturator, neck strap, disconnecting wedge, funnel connector, decannulation cap and speaking valve
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy
  • Phonation
  • Ventilation
Open product list

ProLine Trachealkanülen

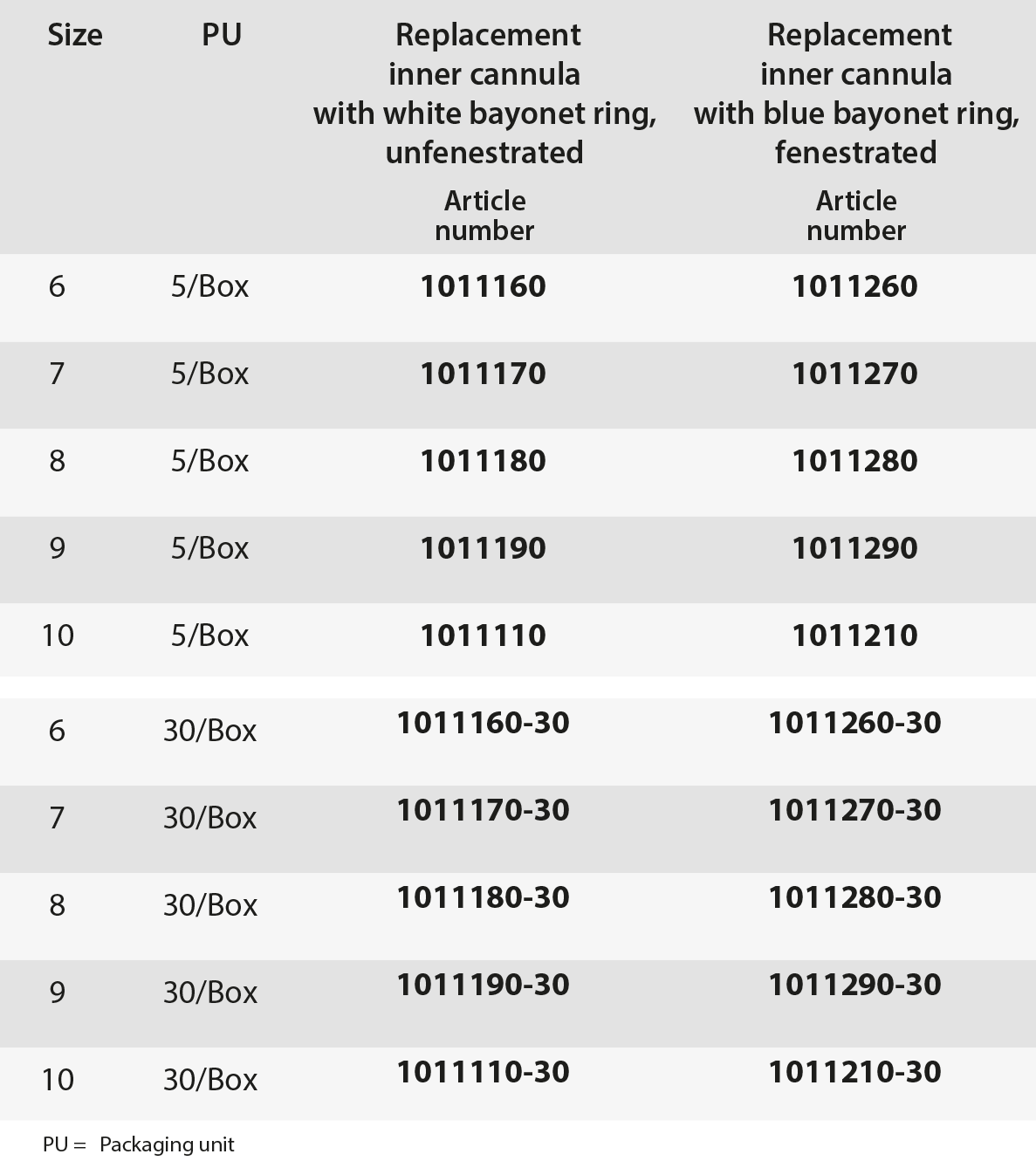

Replacement inner cannulas

All ProLine inner cannulas are made of radiopaque material for precise position control.

They feature a swivelling 15 mm connector, which prevents tensile and shear forces from being transmitted to the tube when ventilators are connected.

The standard inner cannula is equipped with a white bayonet ring.

The fenestrated inner cannula is equipped with a blue bayonet ring and enables phonation in conjunction with a speaking valve.

Open product list

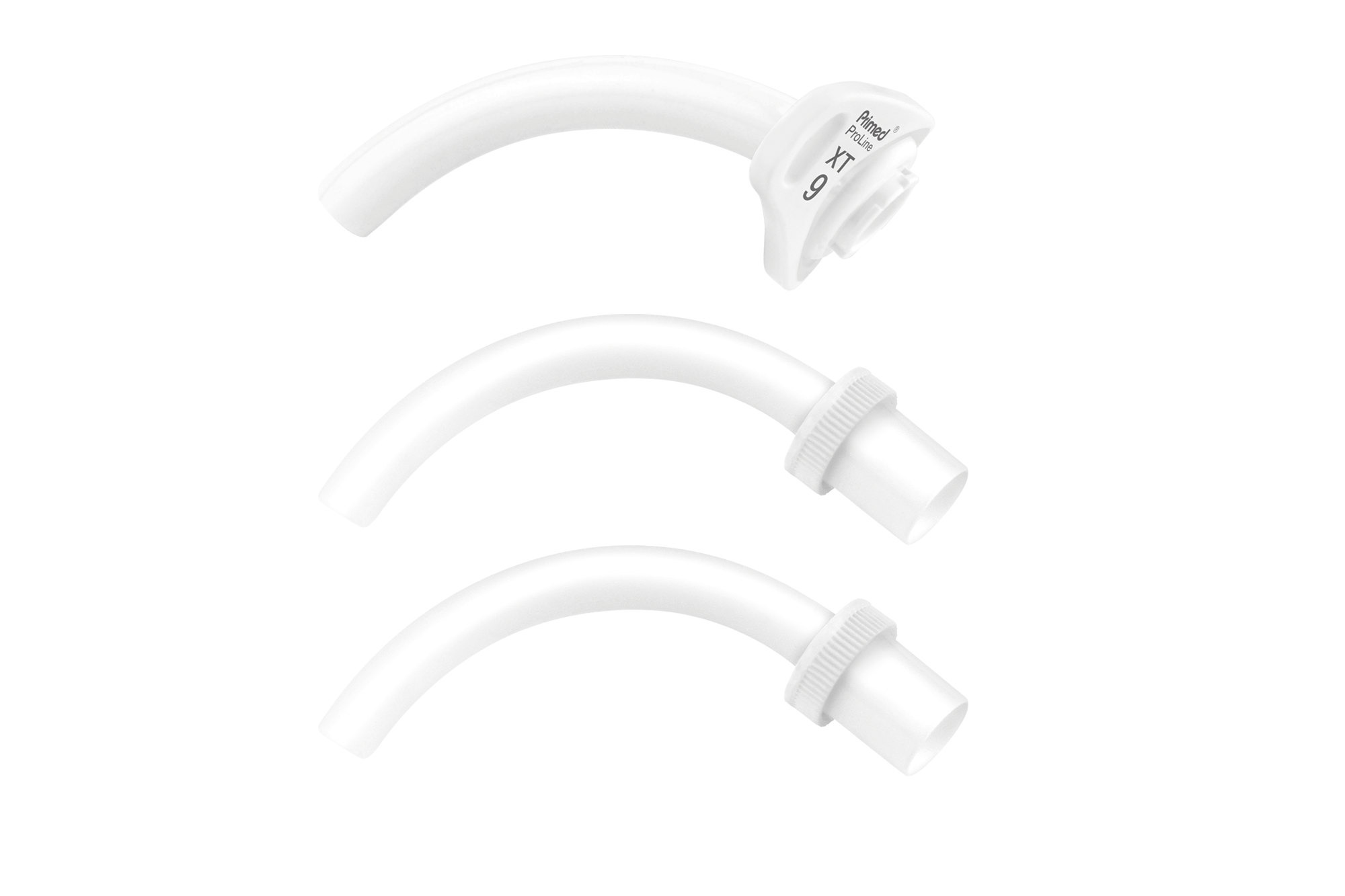

BASIC

Product features:

  • Extra-long outer cannula with bayonet catch
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 2 inner cannulas with white bayonet ring and swivelling 15 mm connector

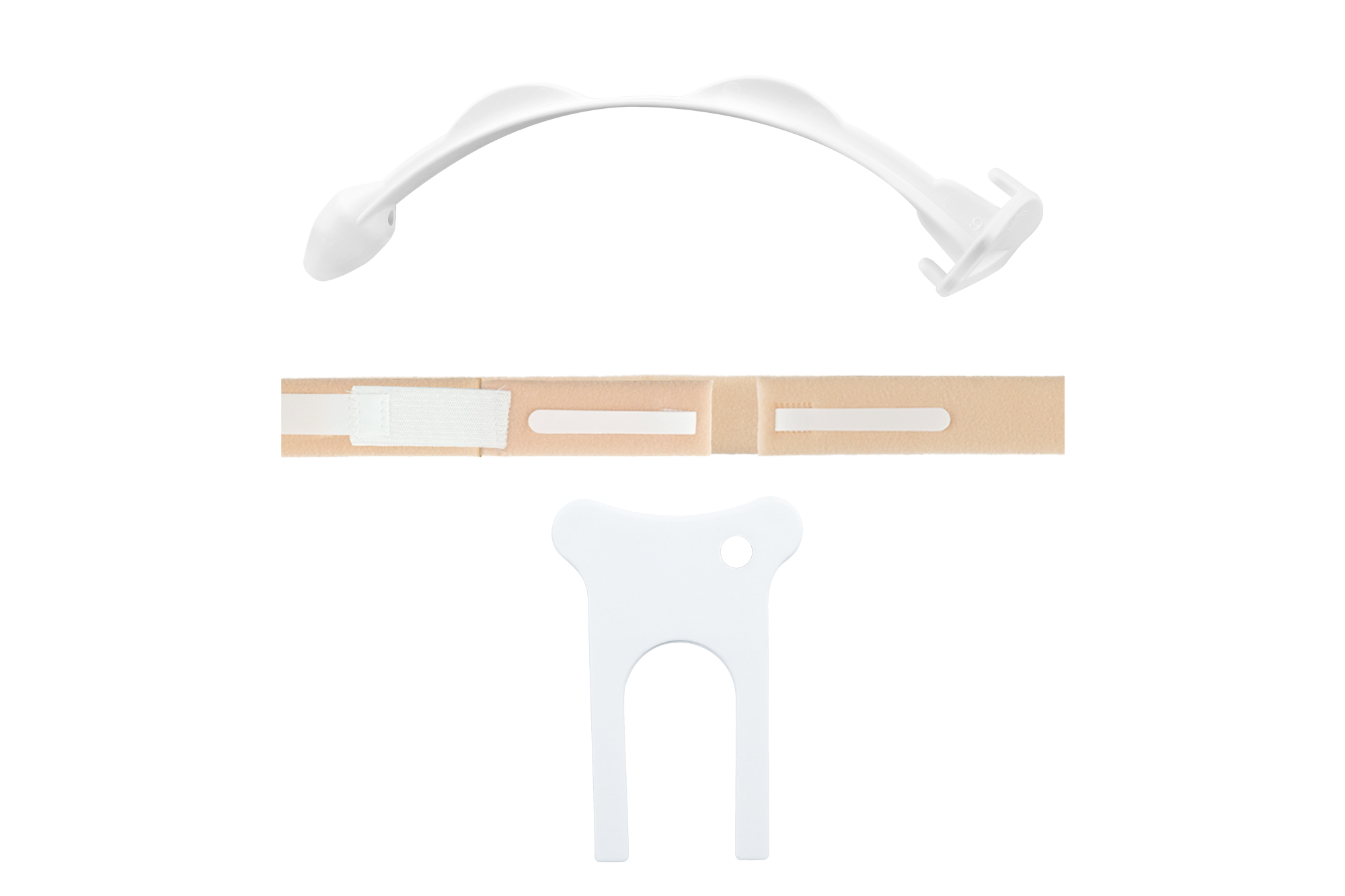

  • Including obturator, neck strap and disconnecting wedge
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy/Laryngectomy
  • Radiation/MRI
Open product list

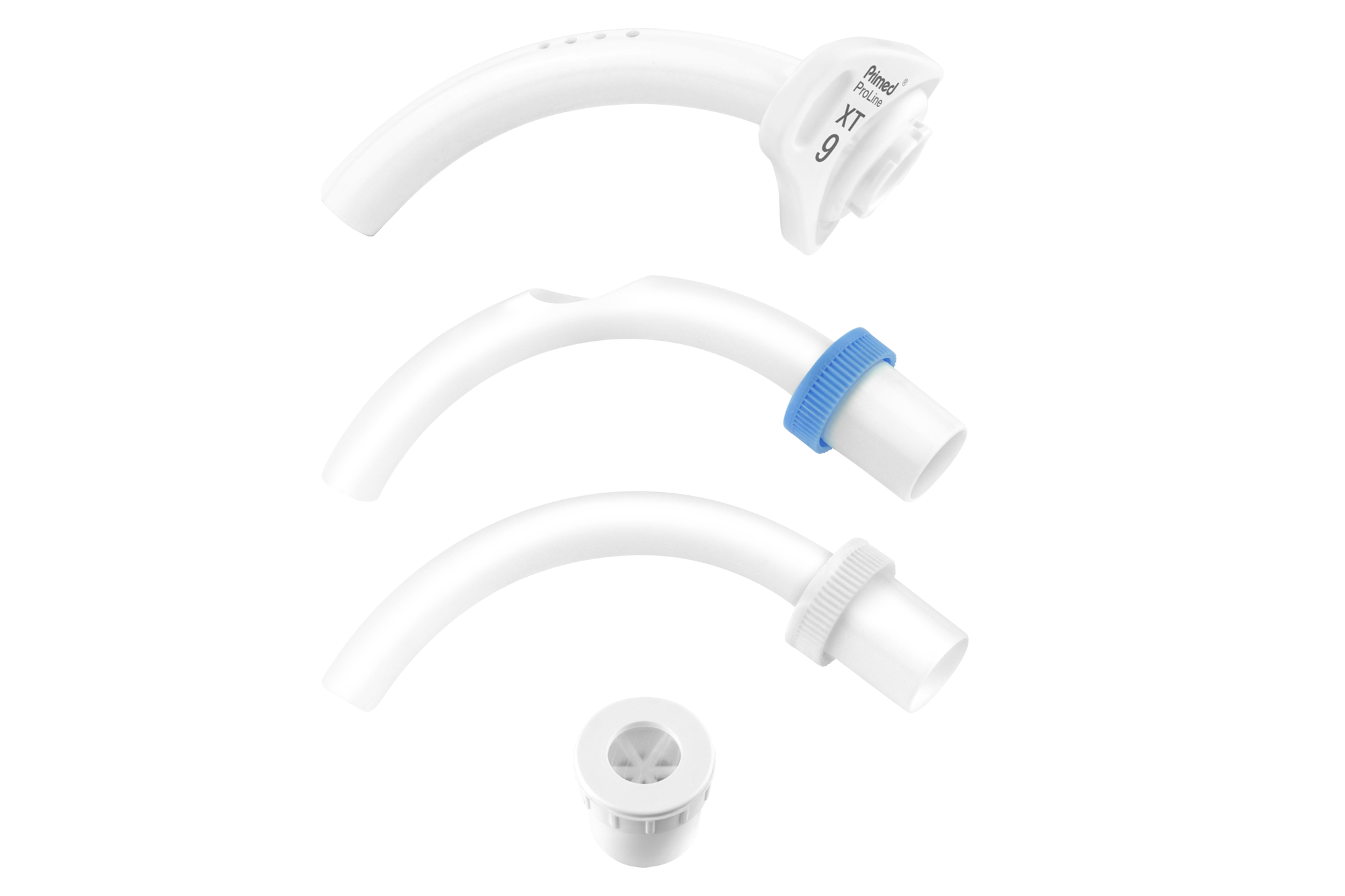

BASIC VOICE

Product features:

  • Extra-long, sieved outer cannula with bayonet catch
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 1 fenestrated inner cannula with blue bayonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve
  • 1 inner cannulas with white bayonet ring and swivelling 15 mm connector

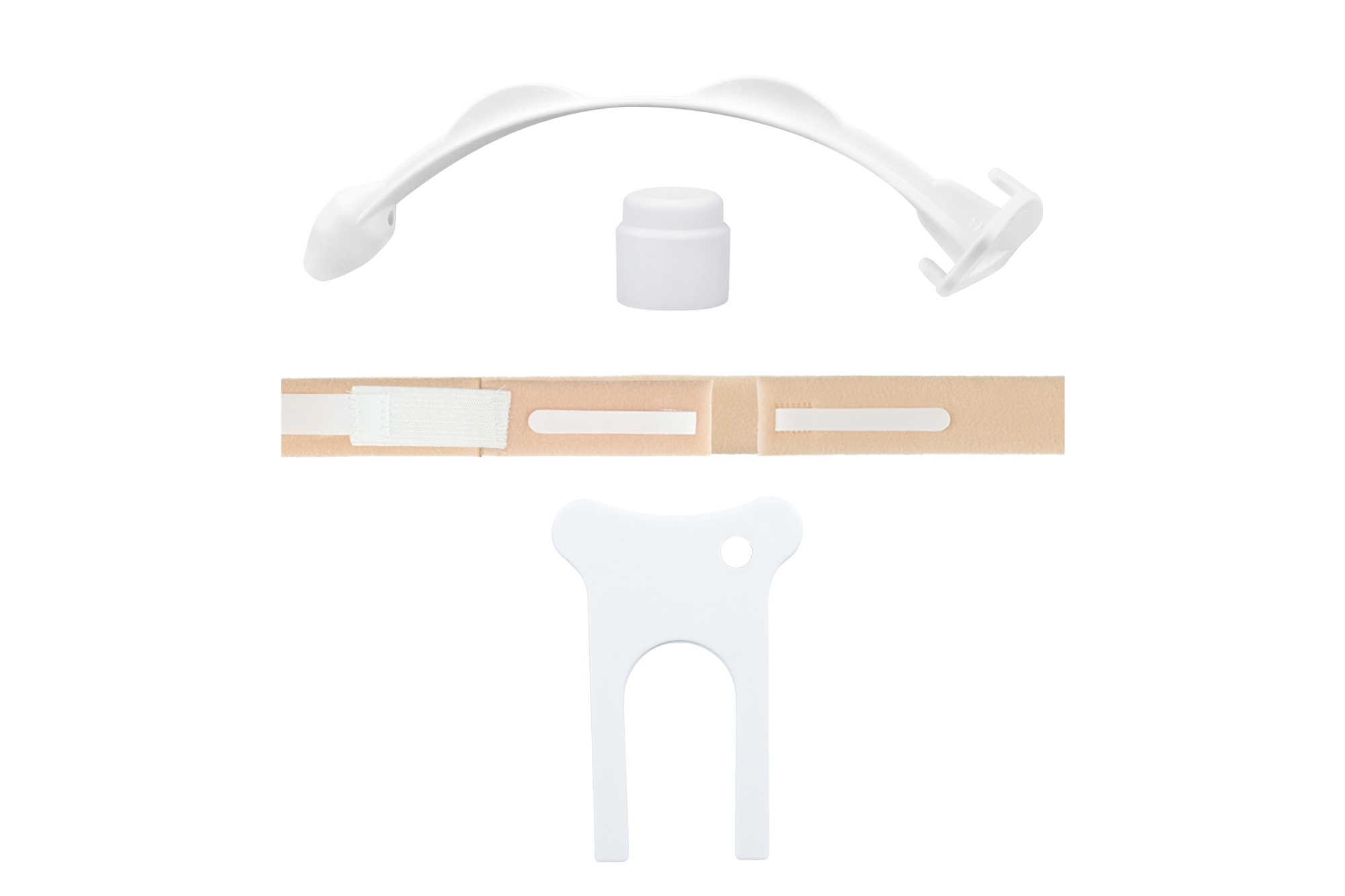

  • Including obturator, neck strap, disconnecting wedge, decannulation cap and speaking valve
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy
  • Phonation
  • Radiation/MRI
open product list

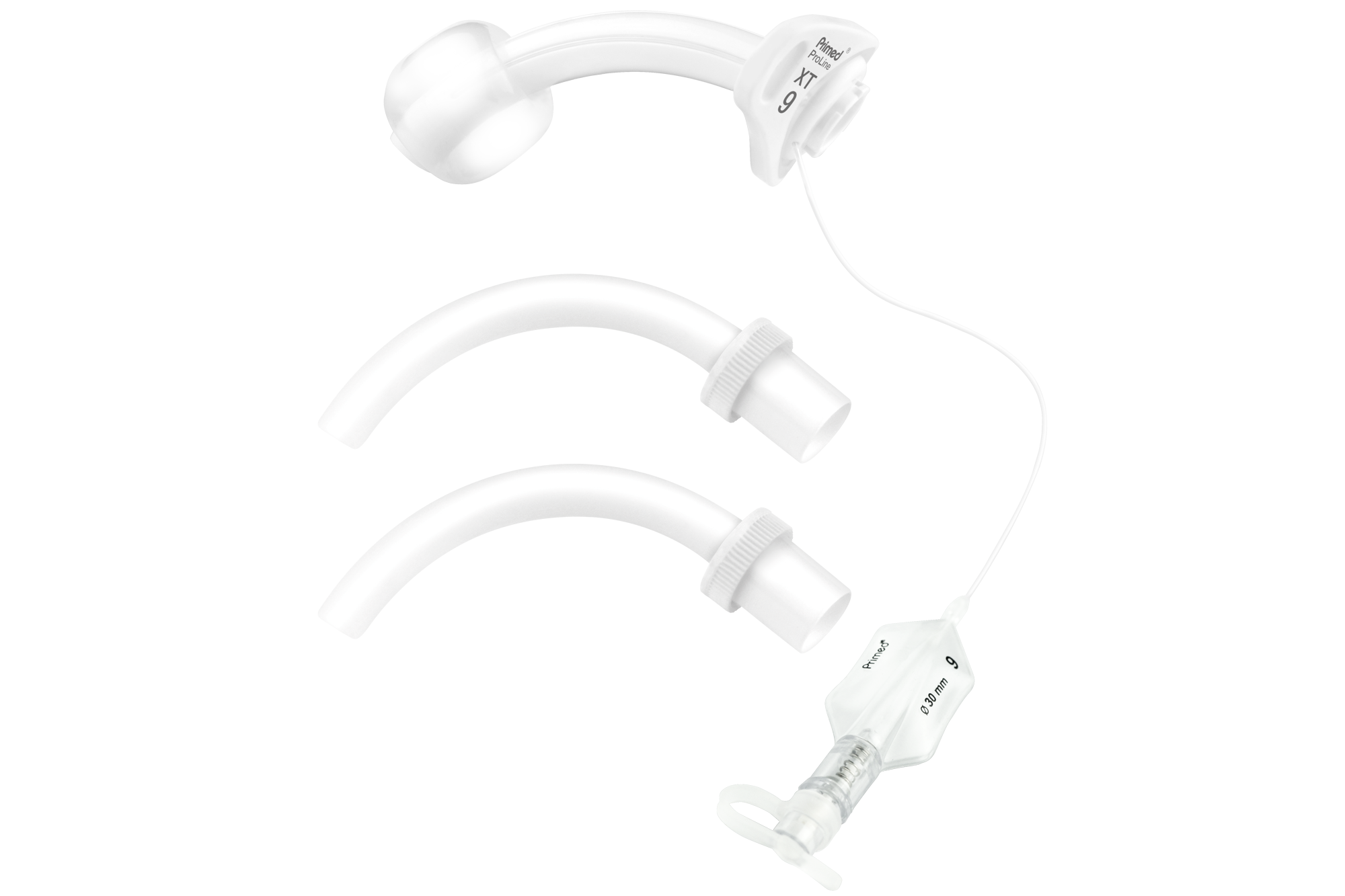

CUFF

Product features:

  • Extra-long outer cannula with bayonet catch and particularly thin-walled polyurethane (PU) low-pressure cuff
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 2 inner cannulas with white bayonet ring and swivelling 15 mm connector
  • Including obturator, neck strap and disconnecting wedge
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy/Laryngectomy
  • Aspiration
  • Ventilation
Open product list

CUFF VOICE

Product features:

  • Sieved outer cannula with bayonet catch and particularly thin-walled polyurethane (PU) low-pressure cuff
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 1 fenestrated inner cannula with blue bayonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve
  • 1 inner cannulas with white bayonet ring and swivelling 15 mm connector
  • Including obturator, neck strap, disconnecting wedge, decannulation cap and speaking valve
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy
  • Phonation
  • Ventilation
Open product list

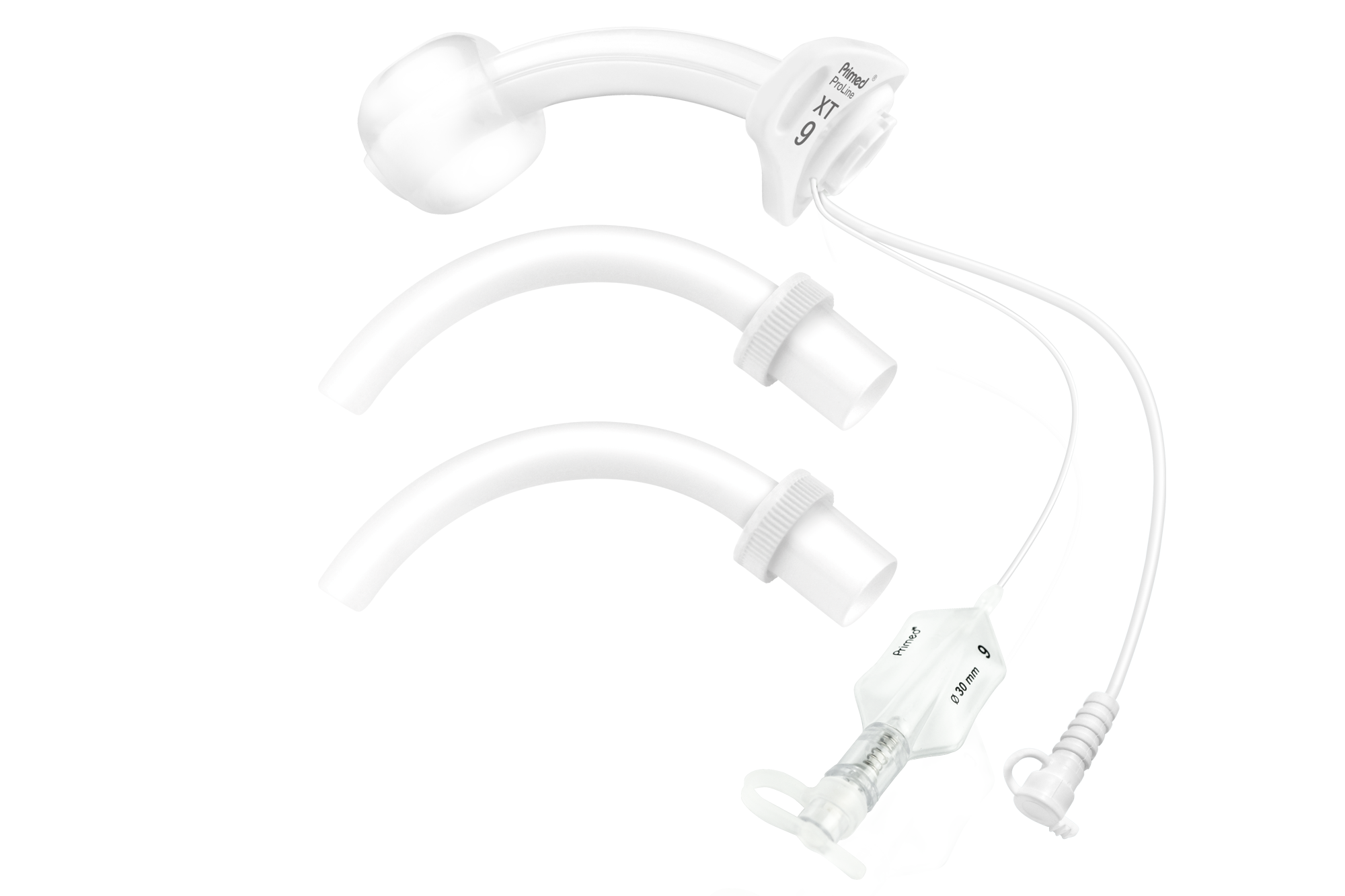

SUCTION

Product features:

  • Extra-long outer cannula with bayonet catch, particularly thin-walled polyurethane (PU) low-pressure cuff and subglottic suction function (features an integrated suction line for on demand subglottic secretion suctioning above the cuff)
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 2 inner cannulas with white bayonet ring and swivelling 15 mm connector

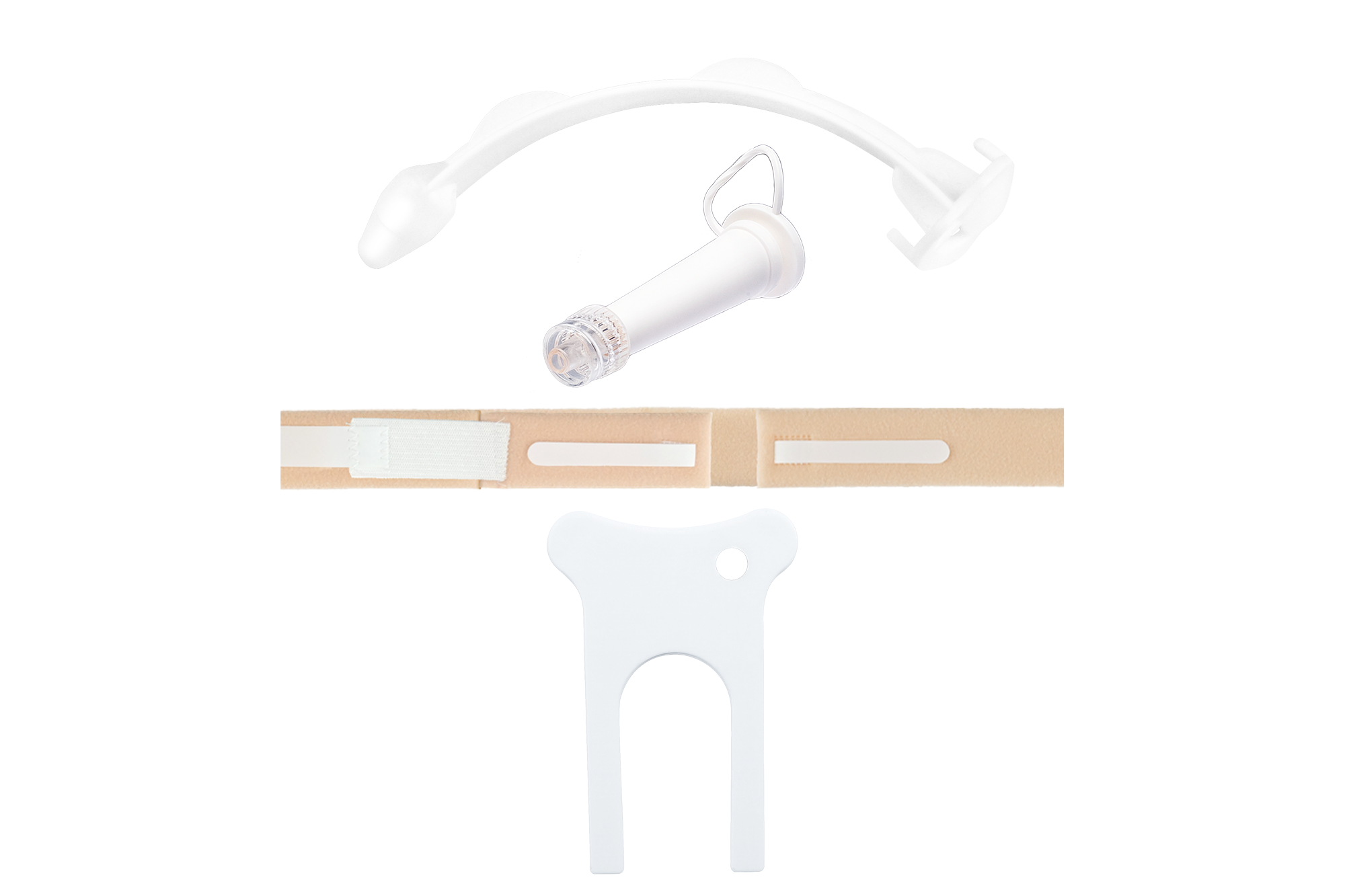

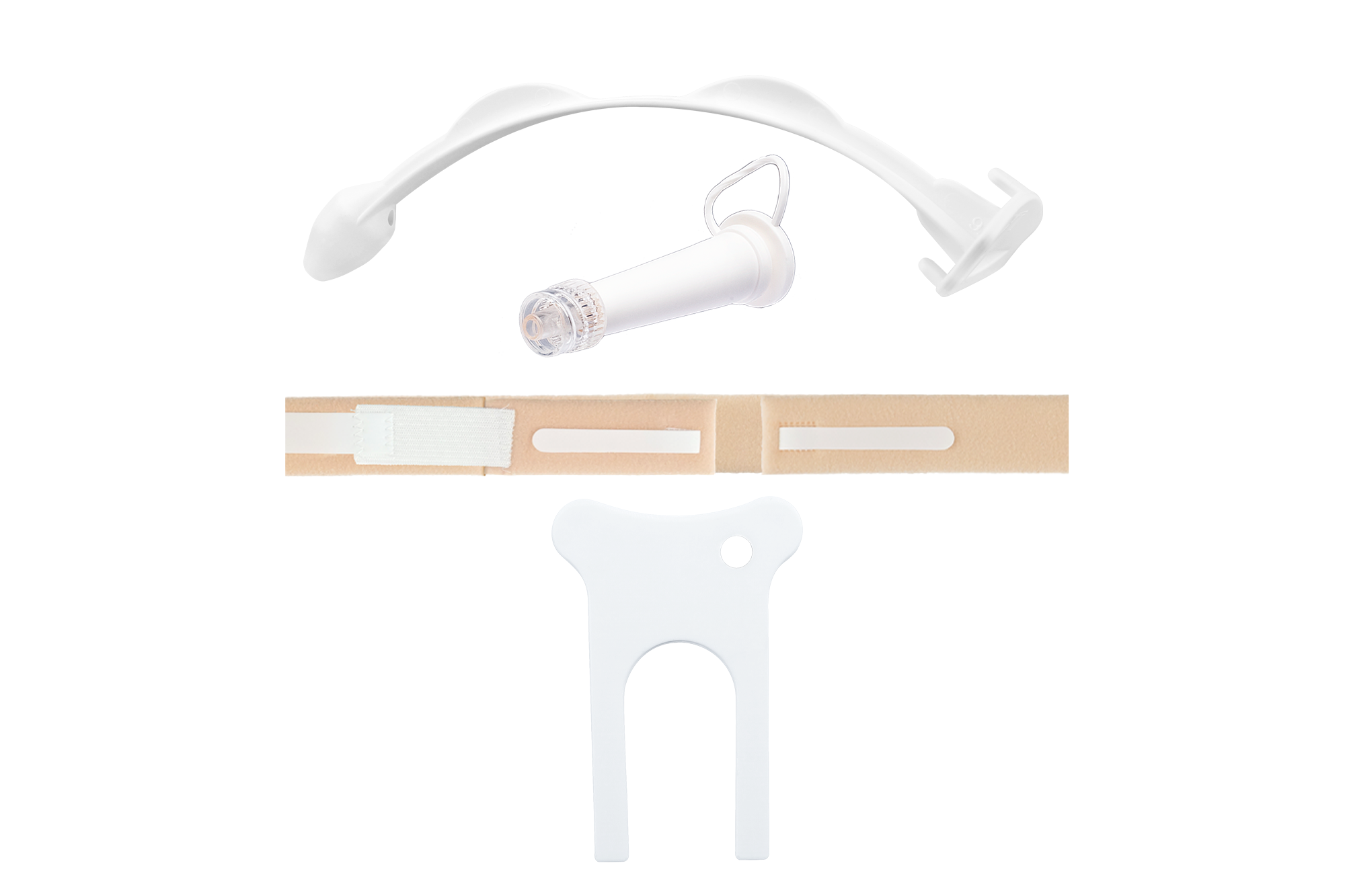

  • Including obturator, neck strap, disconnecting wedge and funnel connector
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy/Laryngectomy
  • Aspiration
  • Ventilation
Open product list

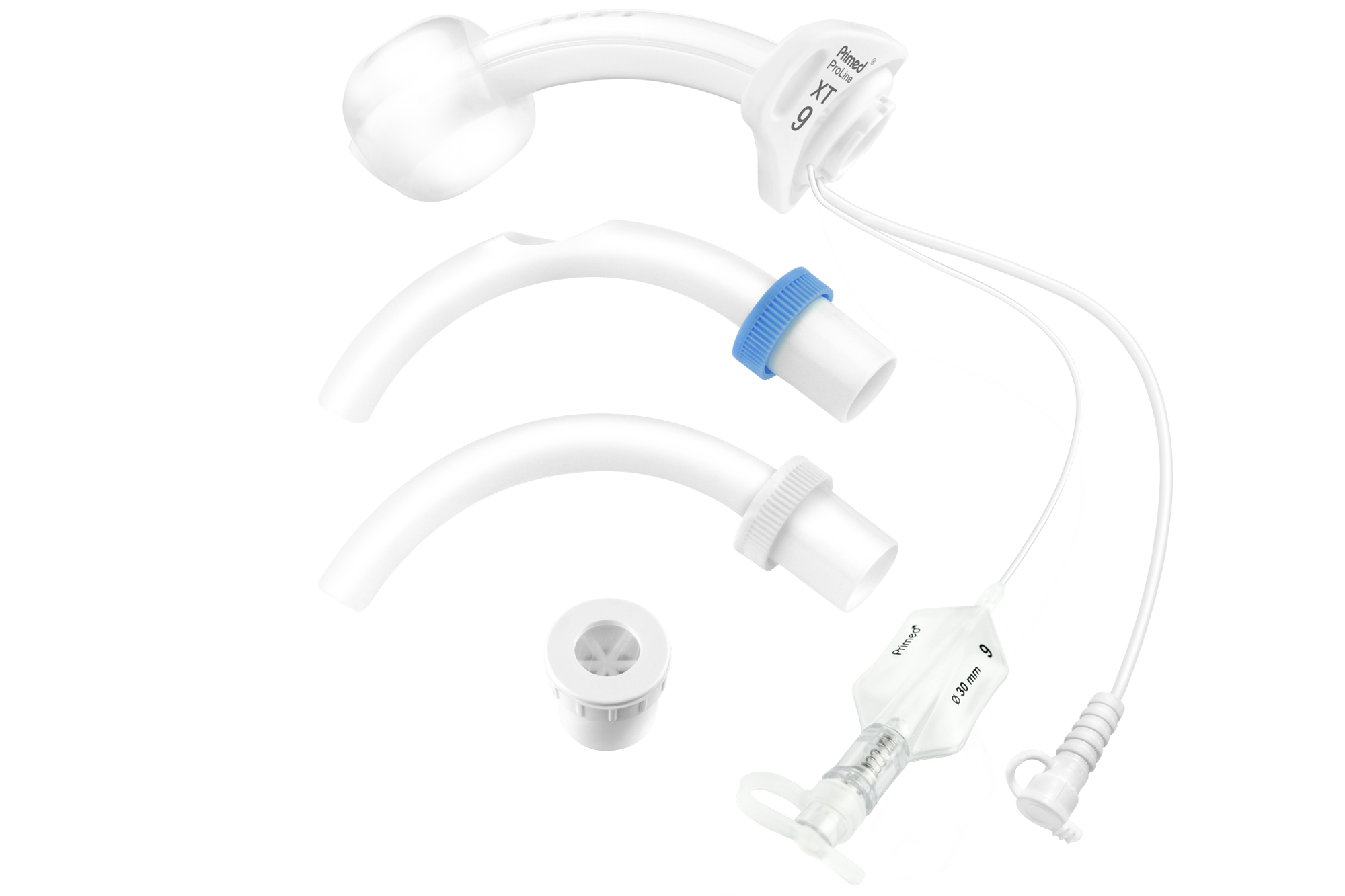

SUCTION VOICE

Product features:

  • Extra-long, sieved outer cannula with bayonet catch, particularly thin-walled polyurethane (PU) low-pressure cuff and subglottic suction function (features an integratted suction line for subglottic secretion suctioning on demand)
  • Generous air supply thanks to extremly thin-walled design and cylindrical form
  • With inner cannula system (all inner cannulas are made of radiopaque material for position control)
  • 1 fenestrated inner cannula with blue bayonet ring and swivelling 15 mm connector enables phonation in conjunction with a speaking valve
  • 1 inner cannulas with white bayonet ring and swivelling 15 mm connector

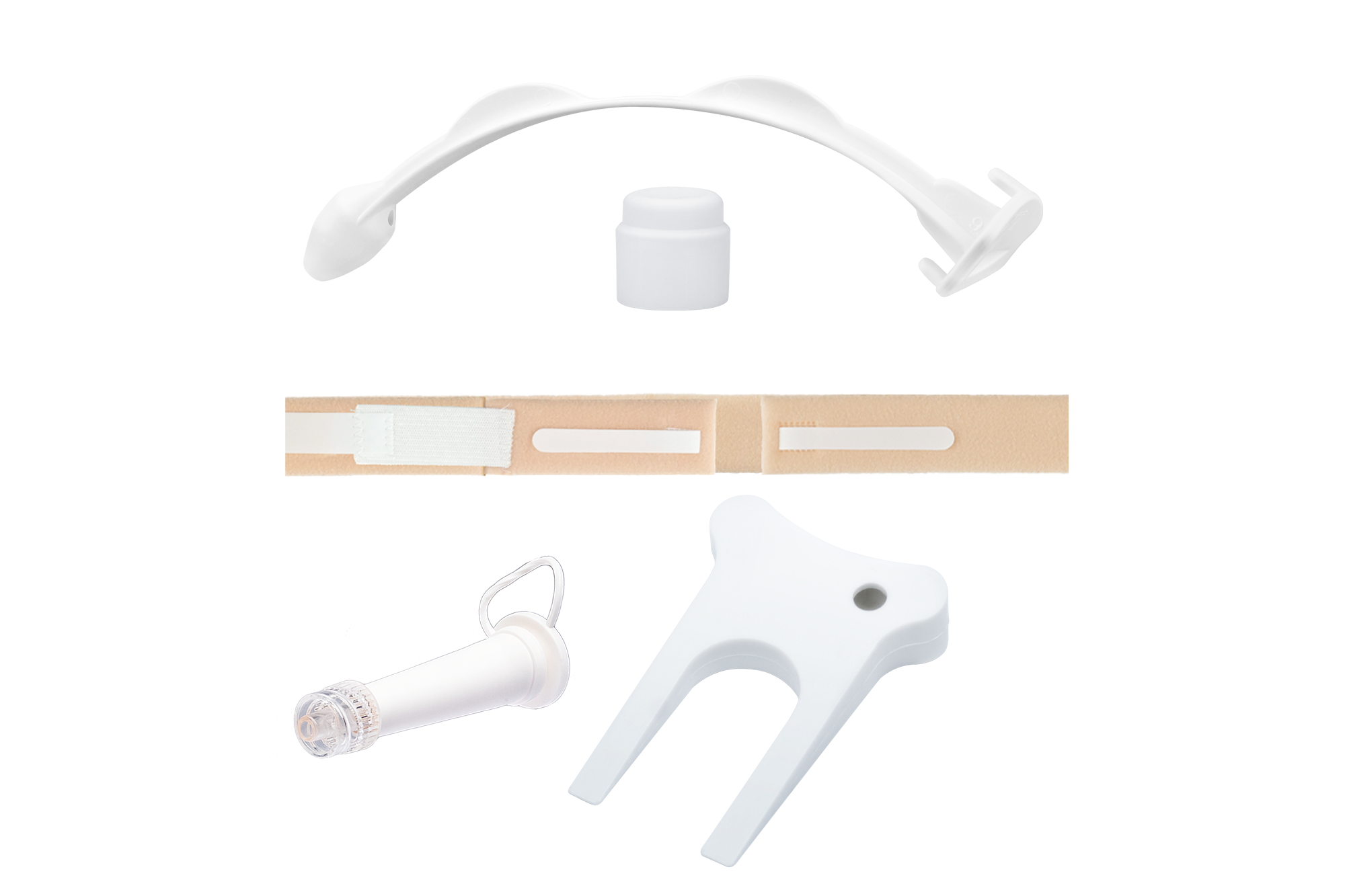

  • Including obturator, neck strap, disconnecting wedge, funnel connector, decannulation cap and speaking valve
  • Material: PU, latex-free, DEHP-free

Indication

  • Tracheostomy
  • Phonation
  • Ventilation
Open product list

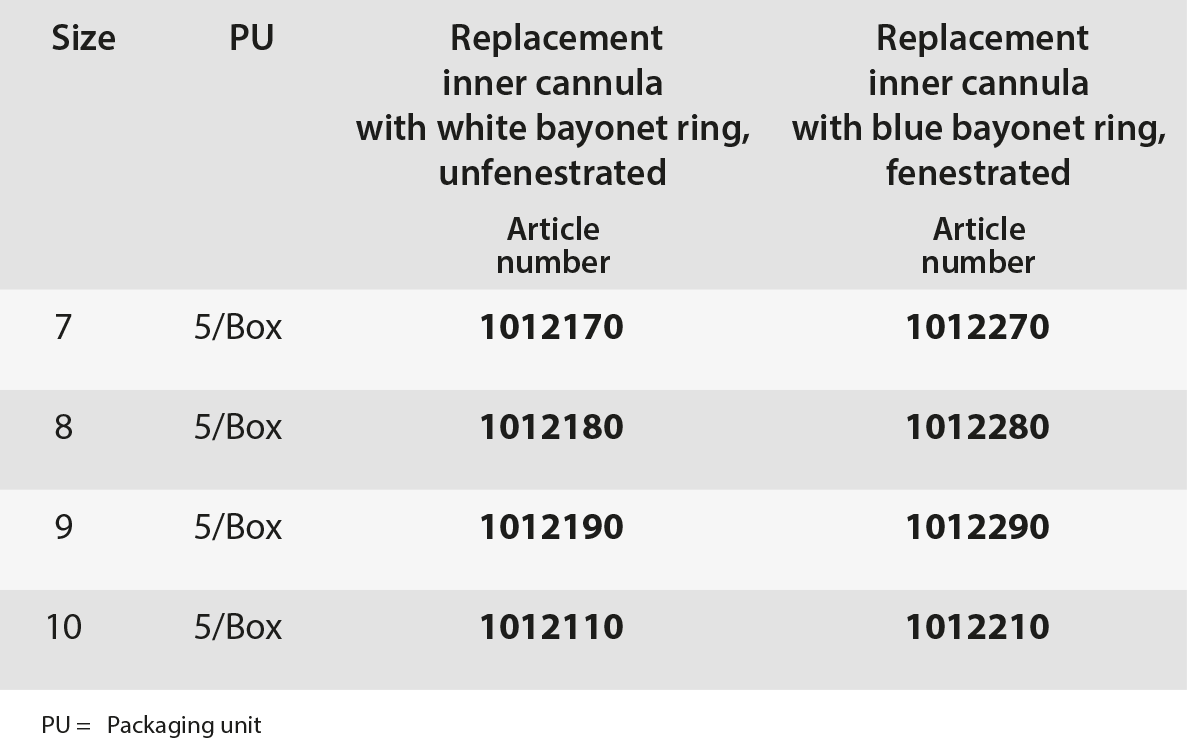

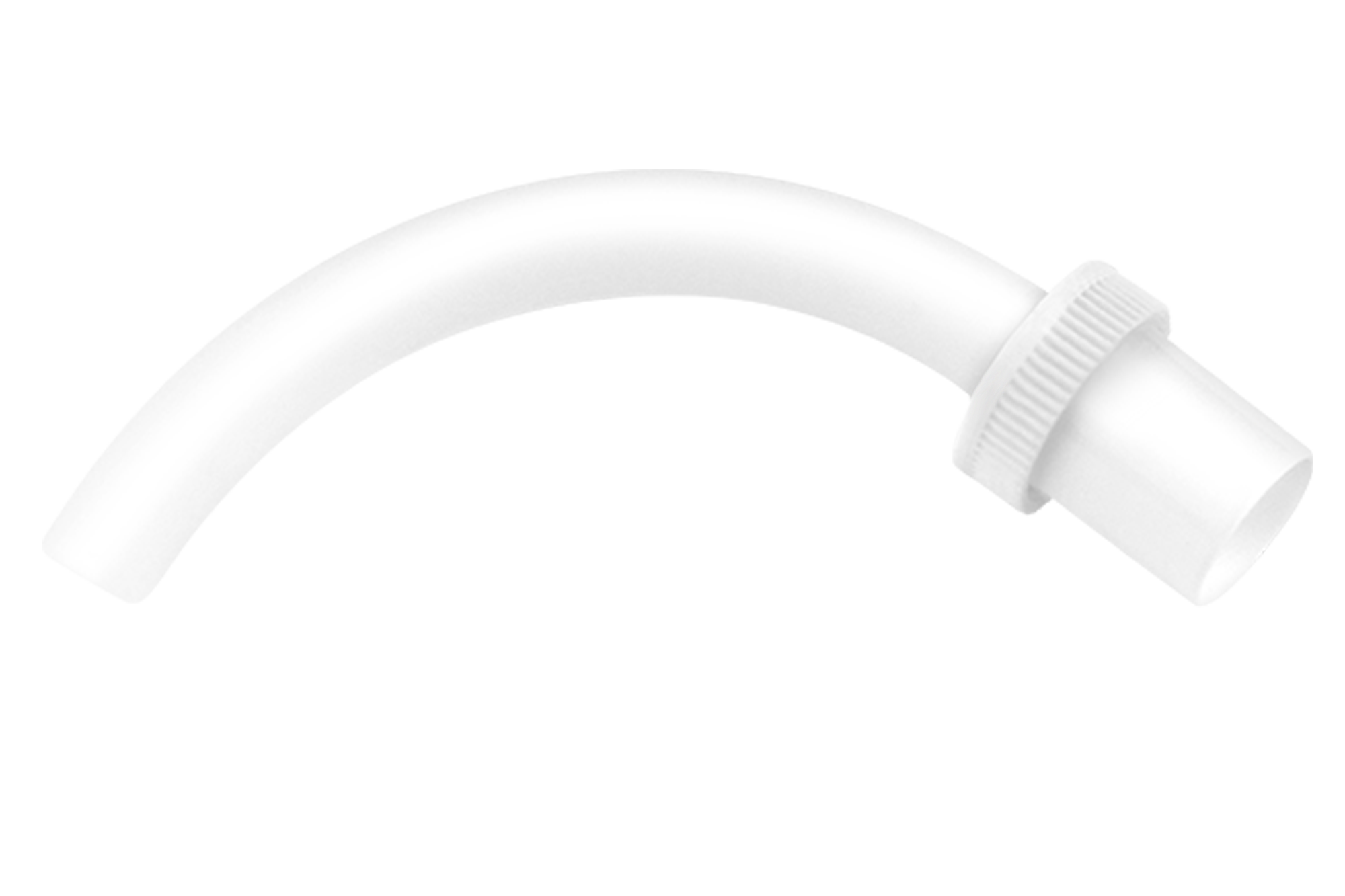

Replacement inner cannulas

All ProLine XT inner cannulas are made of radiopaque material for precise position control.

They feature a swivelling 15 mm connector, which prevents tensile and shear forces from being transmitted to the tube when ventilators are connected.

The standard inner cannula is equipped with a white bayonet ring.

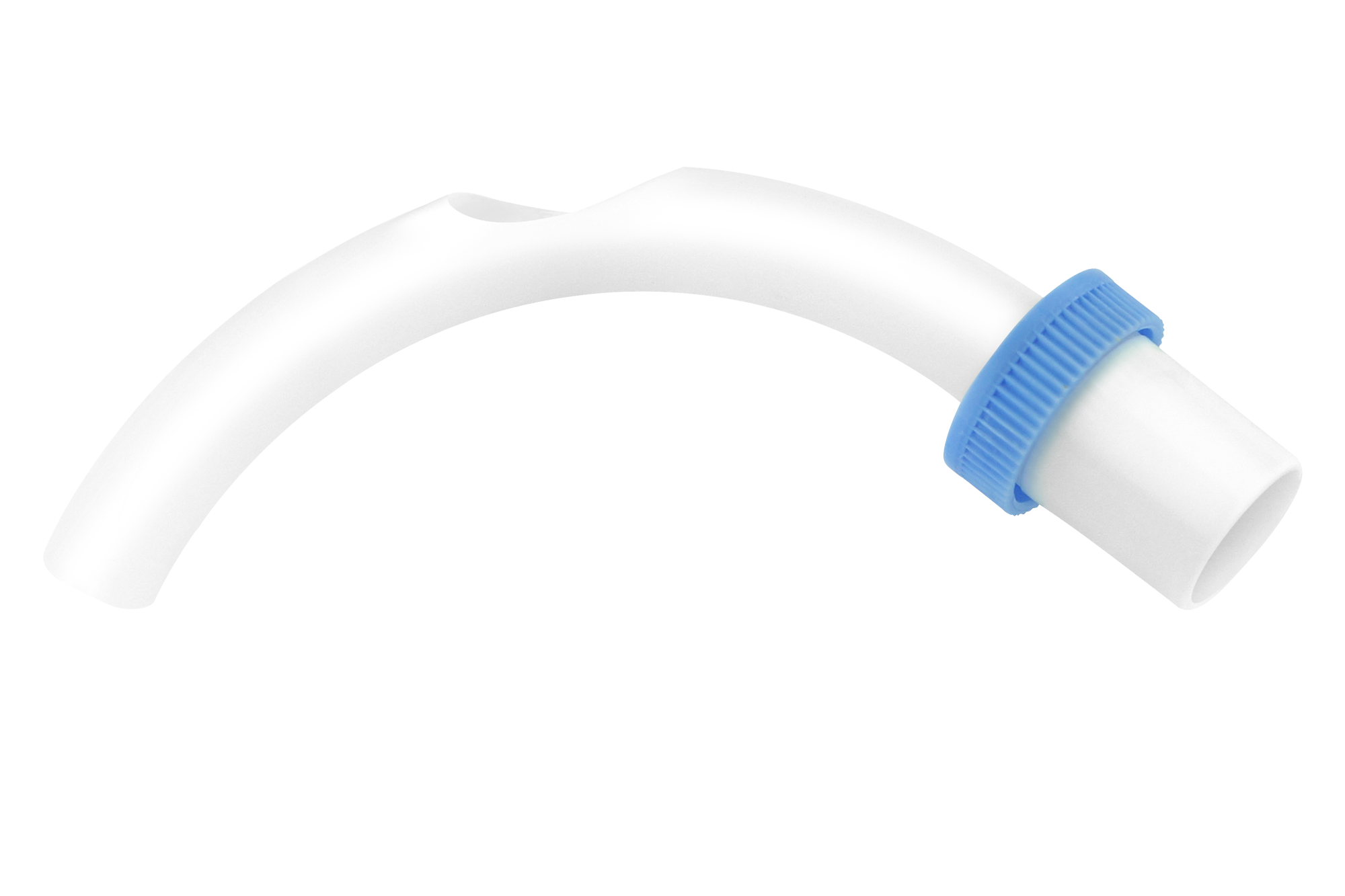

The fenestrated inner cannula is equipped with a blue bayonet ring and enables phonation in conjunction with a speaking valve.

Open product list
